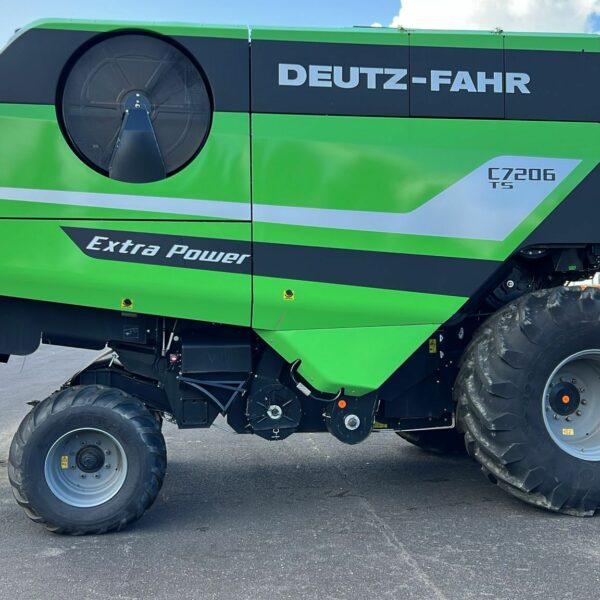

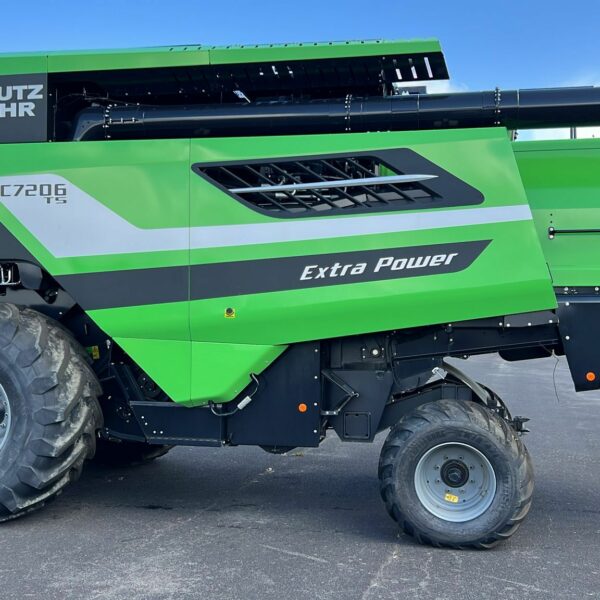

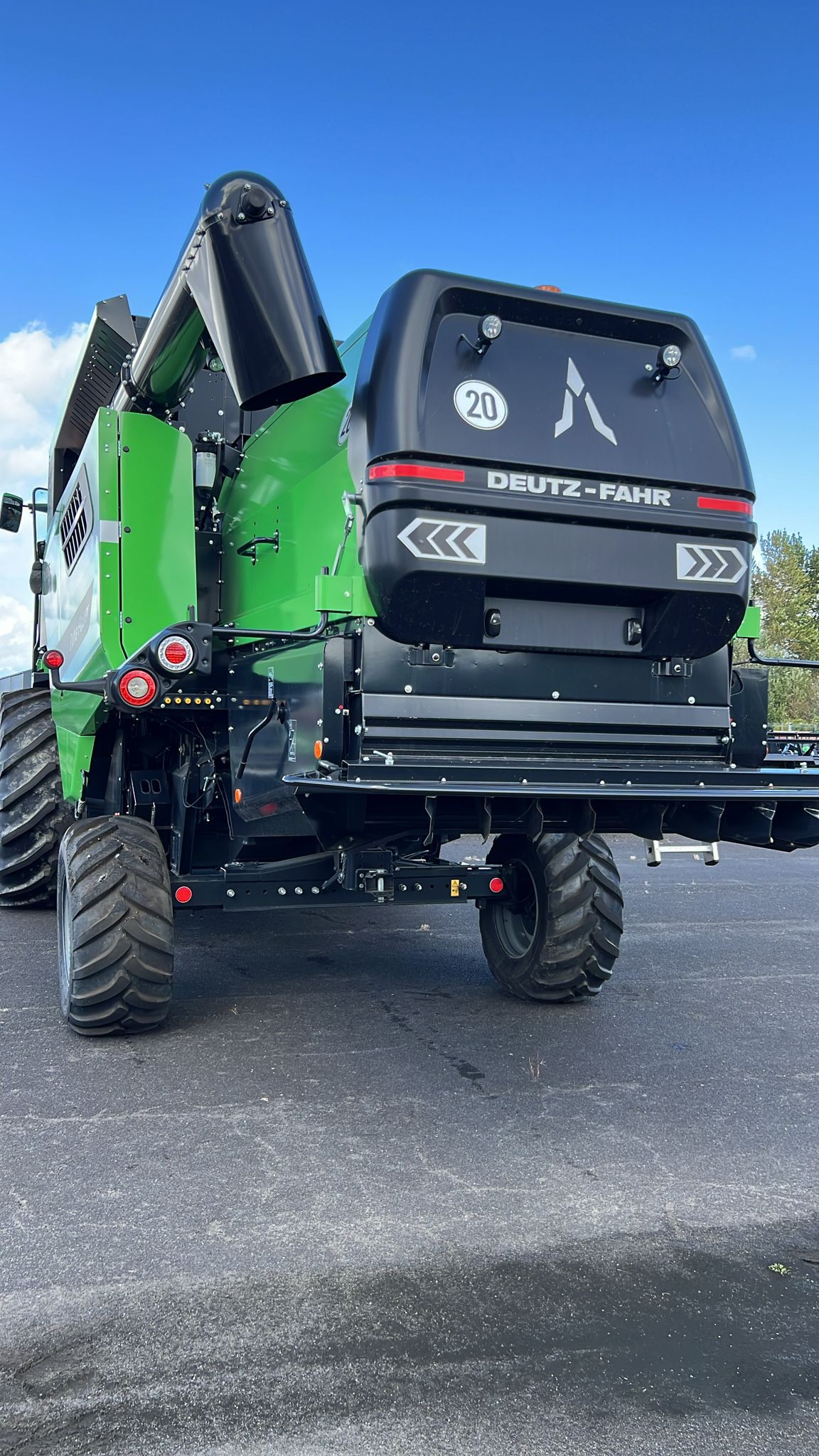

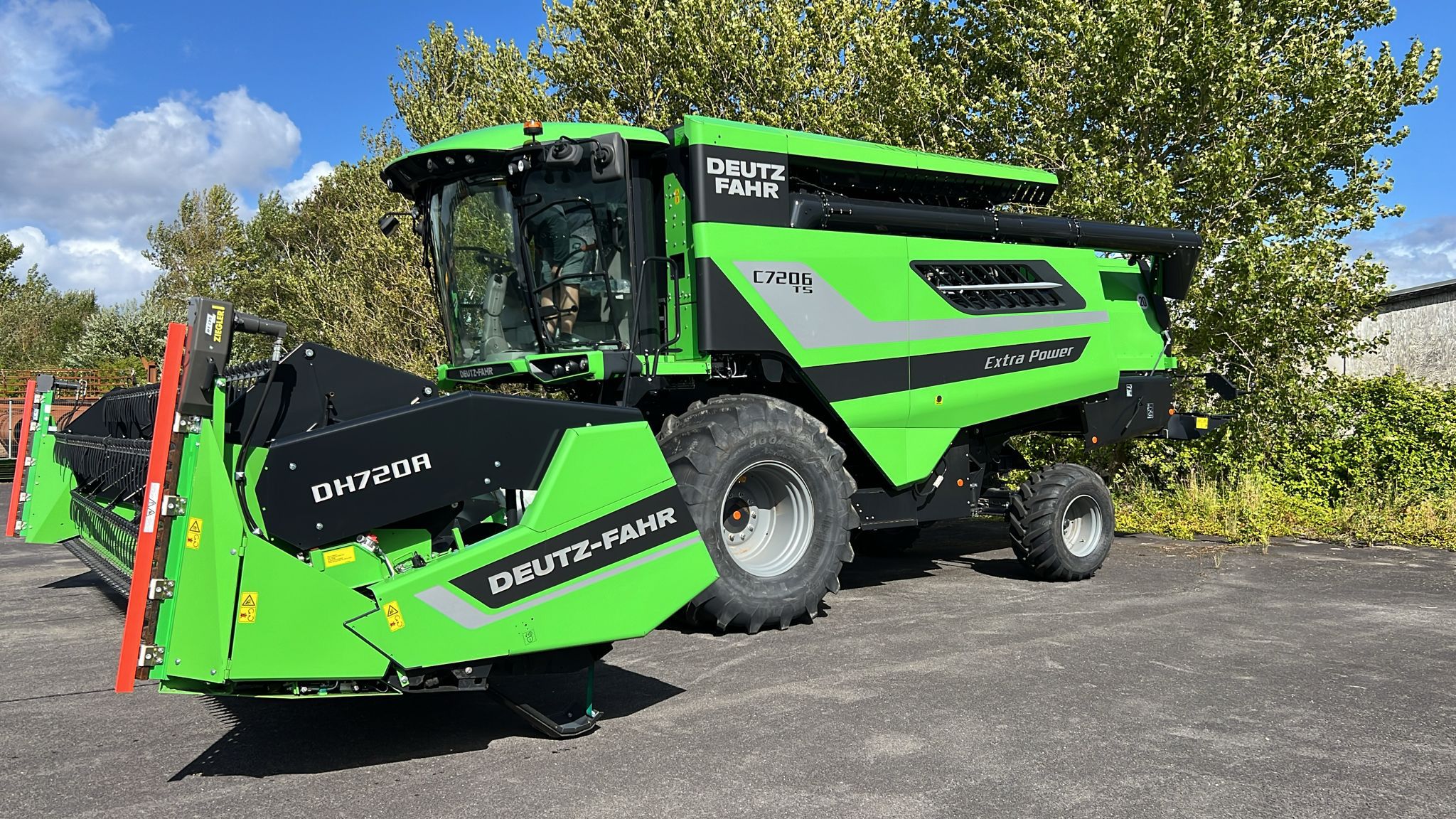

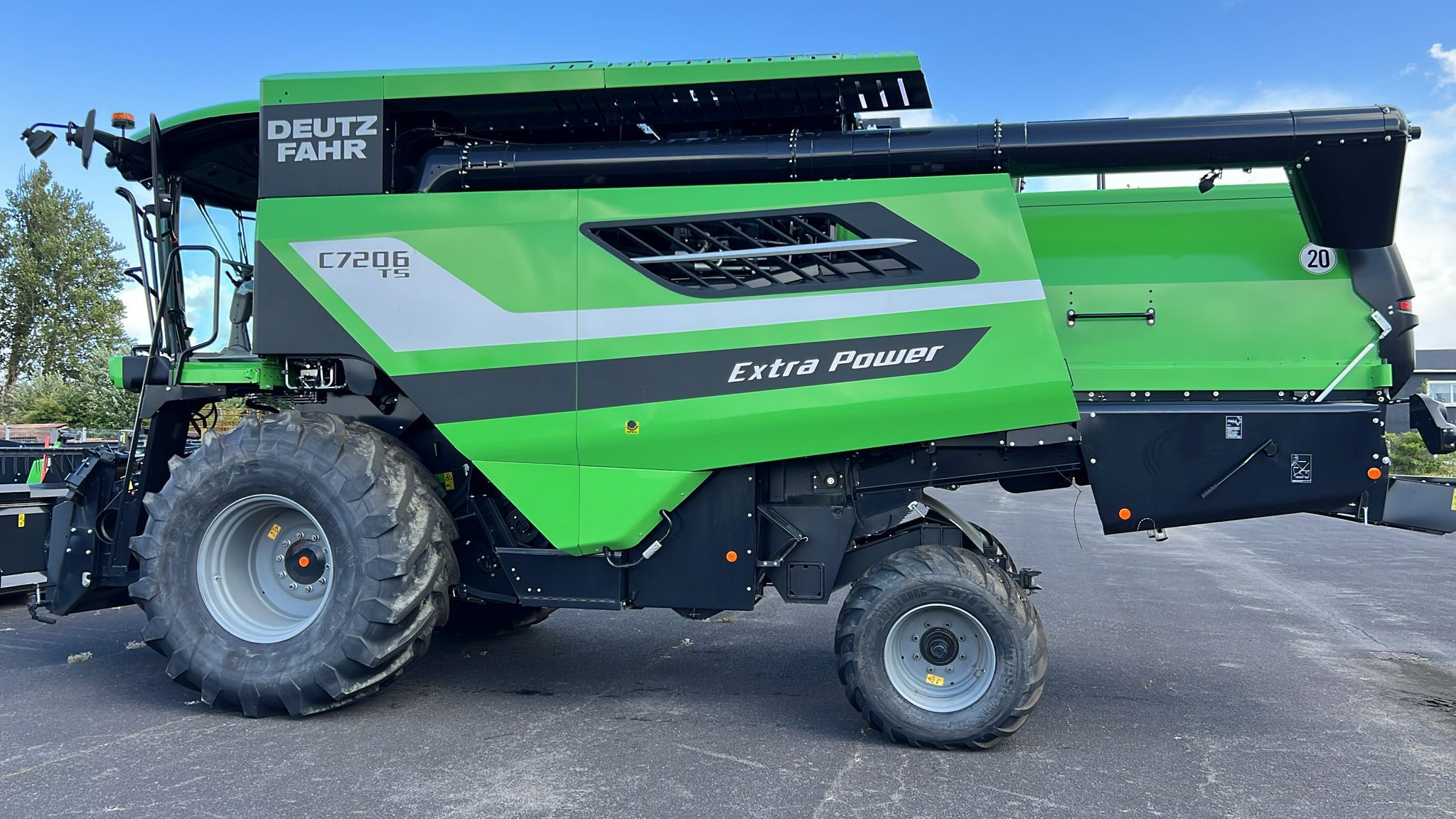

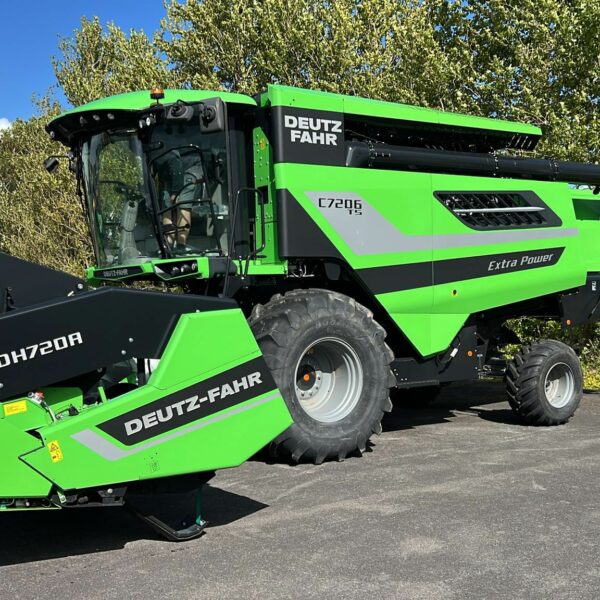

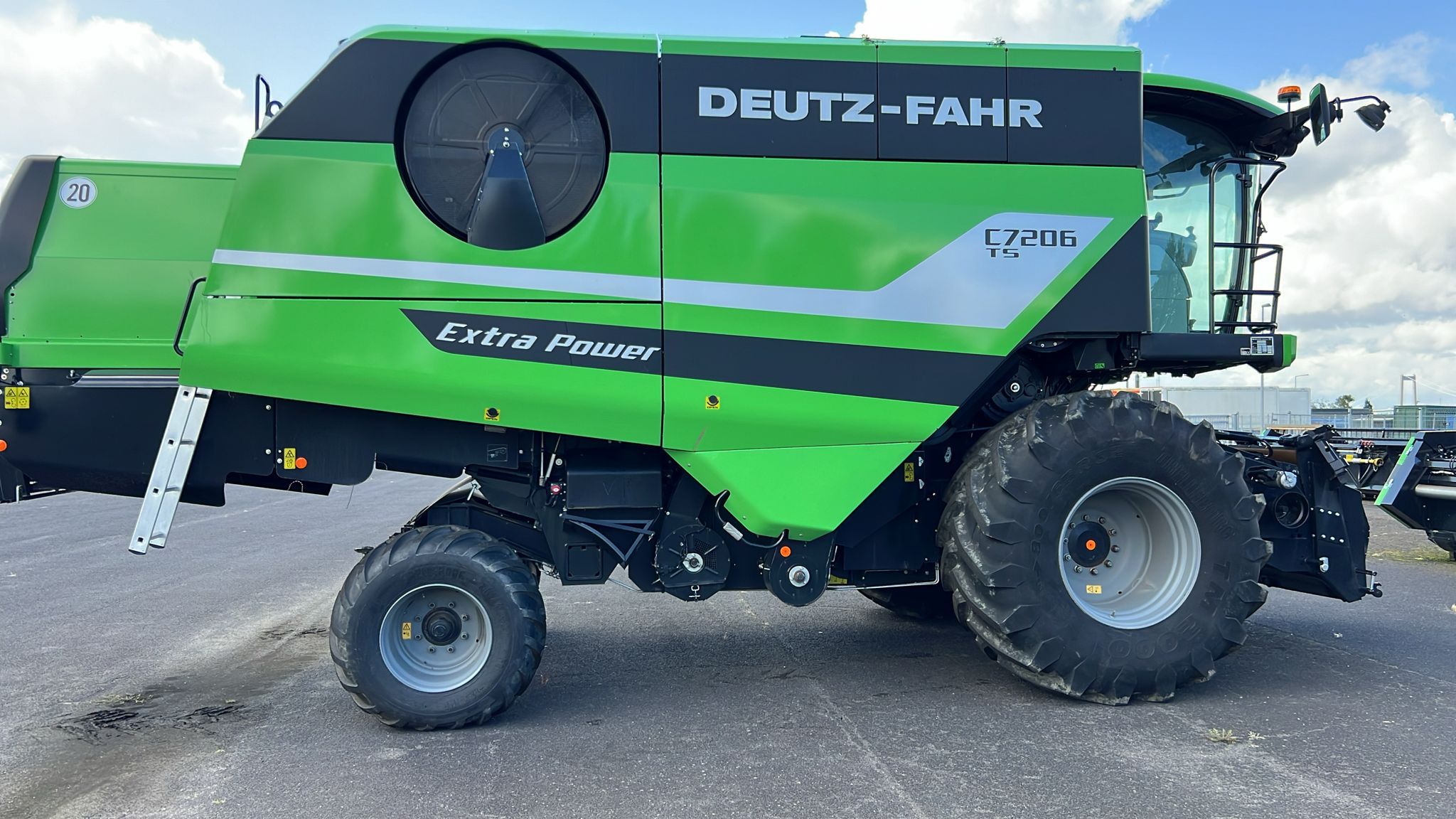

| Deutz C7206TS TIER3 |
|

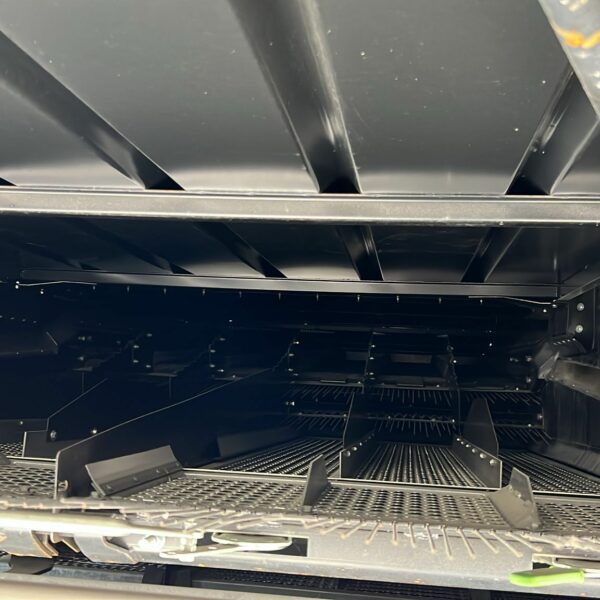

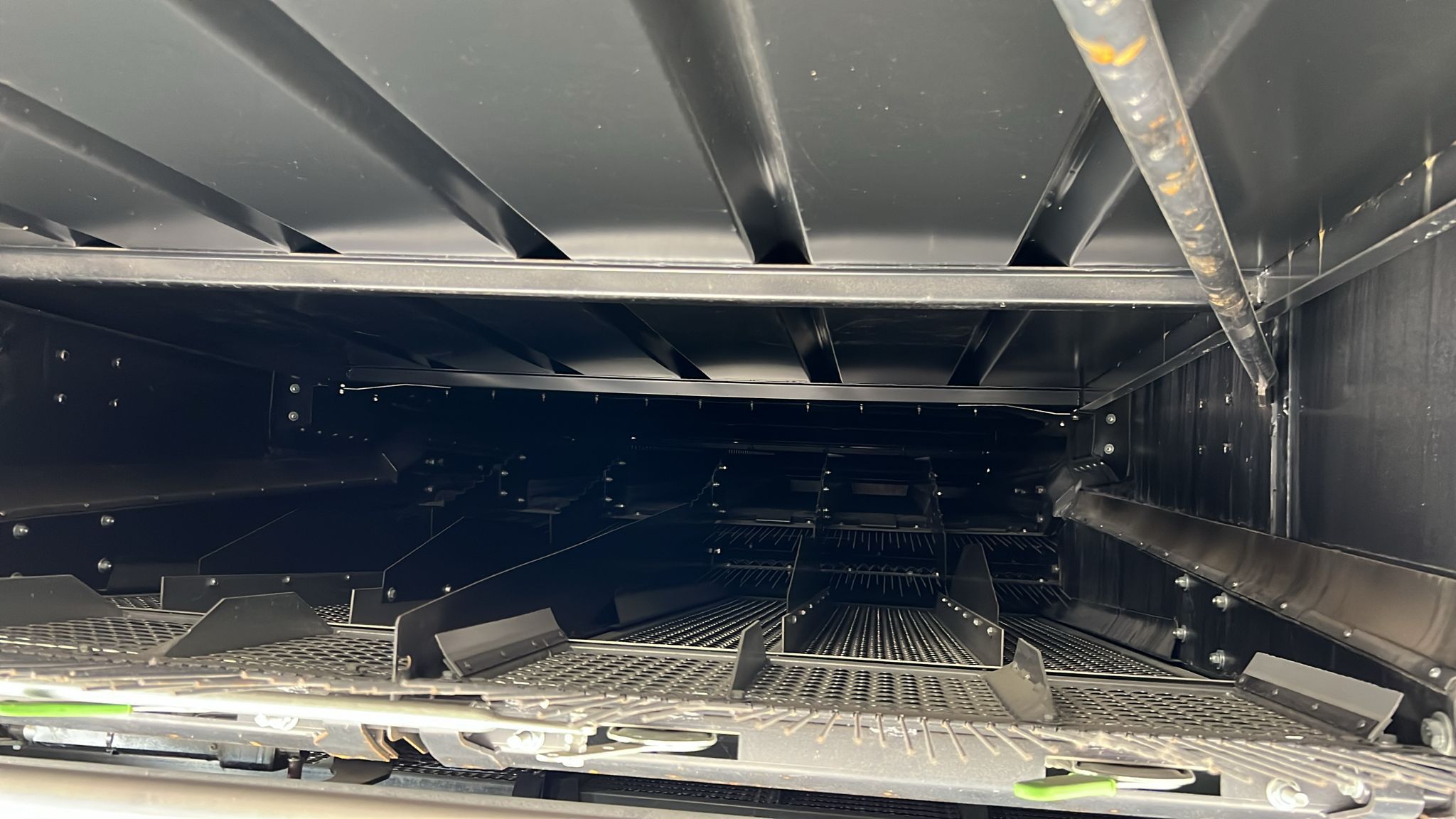

| Conventional combine, 6 Straw-walkers with |
|
| open bottom and 4 steps. |
|
| Feeder channel with 3 chains and |
|
| alternated bars, electric reverser. |
|
| Threshing drum width 1520 mm, diameter 600 |
|
| mm, 8 bars, variable speed |
|
| from 420 to 1250 rpm. Turbo Separator with |
|
| 590 mm diameter. Adjustment |
|
| in 5 positions from 25 to 65 mm. |
|
| Speed 775 or 410 rpm Concave with 15 bars, |
|
| 121° wrapping angle; front |
|
| and rear independent adjustment, deawing |
|
| plates with external control. |
|
| Segmented preparation pan with double |
|
| cascade pre-sieve. High |
|
| performance cross-flow turbine fan. DGR |
|
| system, double grain return |
|
| elevator with left and right |
|
| rotothreshers, discharge onto the |
|
| preparation pan. Grain tank capacity 9500 |
|
| litres , unloading speed 90 |
|
| l/s. Deutz TCD 2013 L06 4V 6 Cylinders |
|
| 7.2 l common rail diesel engine, |
|
| Stage IIIA; Max Power 269 kW / 366 HP. |
|
| Fuel tank 750 litres. |
|
| Hydrostatic transmission with 4 gears, |
|
| mecahnical control of the |
|
| transmission speed. Load sensing hydraulic |
|
| pump for main services. |
|

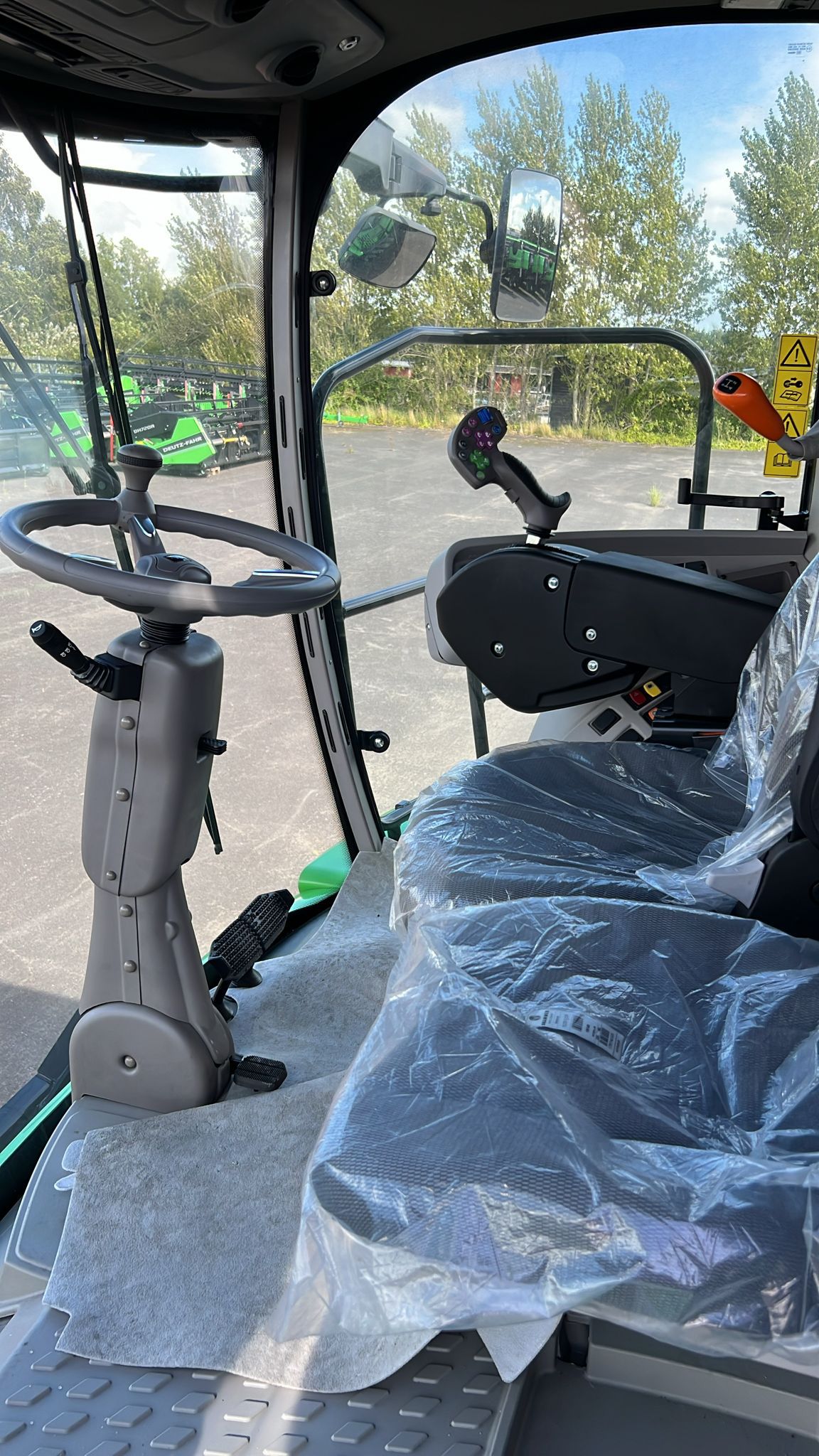

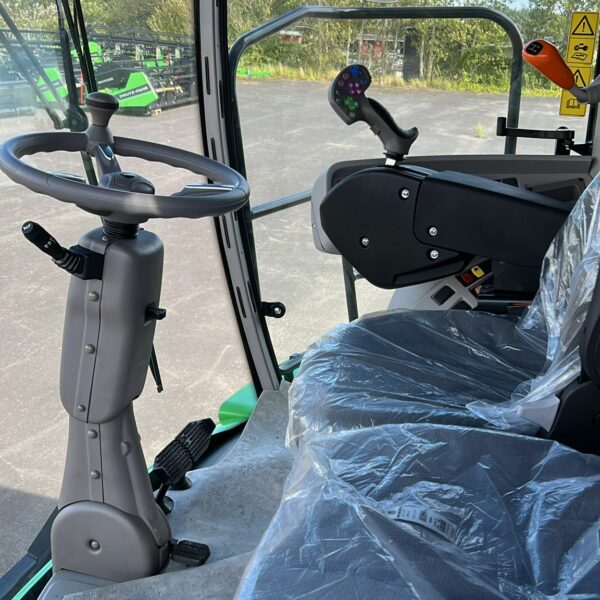

| Commander cab V with basic light |
|
| configuration, road circulation lights |
|
| and rotary beacon. CCM (Combine Control |
|
| Management). Air conditioning |
|
| and heating standard. Without cutting |
|
| table. |
|
|
|
| WORKING LIGHTS |
4 ON MIRRORS |
| VIDEO CAMERA |
REAR VIEW |
| AIR COMPRESSOR SYSTEM |
WITH AIR TANK 60LT |
| LIFTING RAMS |
ADDITIONAL |
| TRESHING DRUM SPEED REDUCTOR |
UP TO 210/MIN |
| UNLOADING PIPE |
LONG 5.60 M |
| LITERATURE |
|

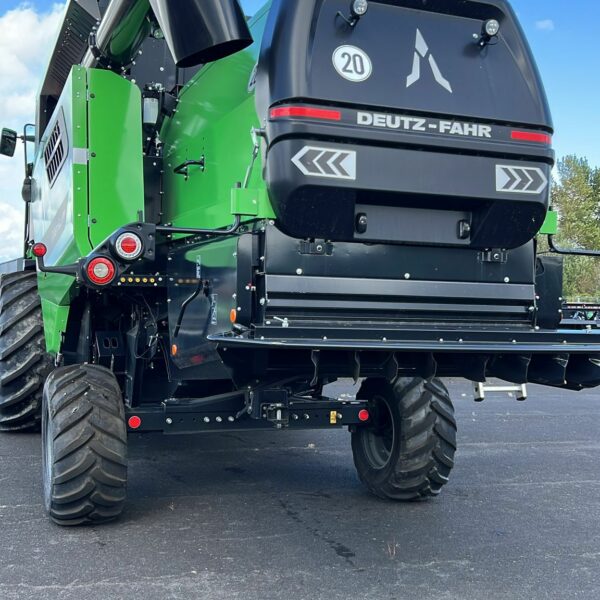

| STRAW CHOPPER |
KPAB |
| STRAW CHOPPER MAIZE KIT |
STRAW CHOPPER MAIZE KIT |
| CORN THRESHING |
STANDARD HTS |
| PROTECTION GRID |
FOR MAIZE/SUNFLOWE |
|
|
| WEIGHTS SUMMARY: |
|
| Total Gross Weight: 15.470,00 KG |
|
| Total Net Weight: 15.390,00 KG |
|
| Total Oil Weight: 130,20 KG |
|
| ——————————————- |
|
|
|

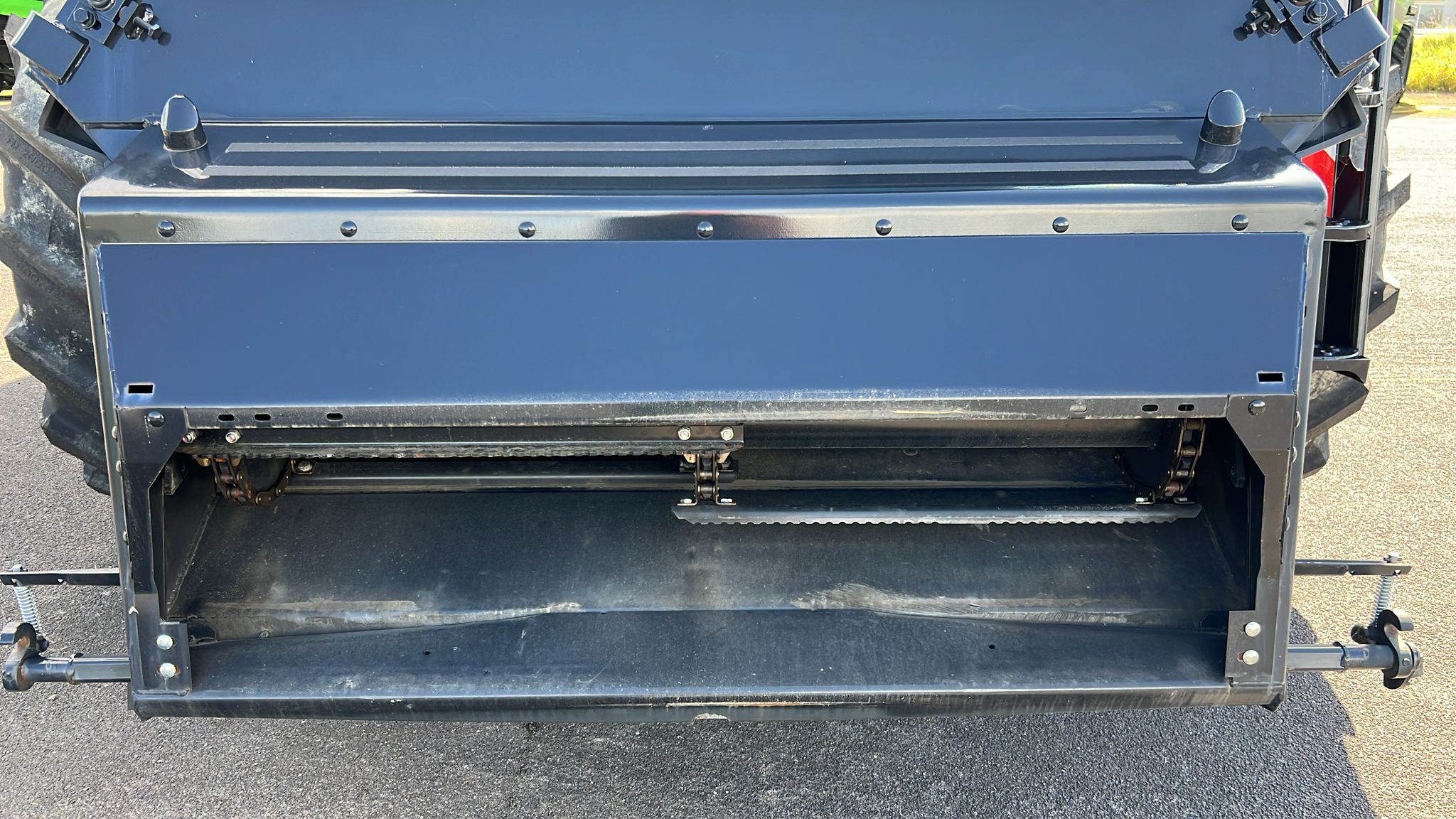

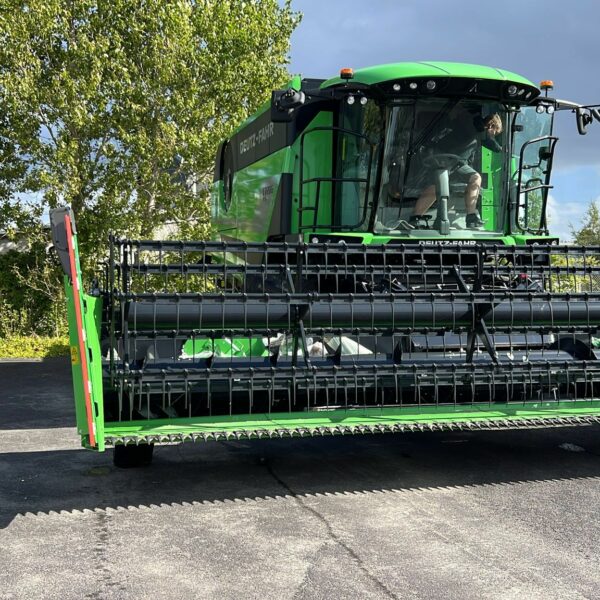

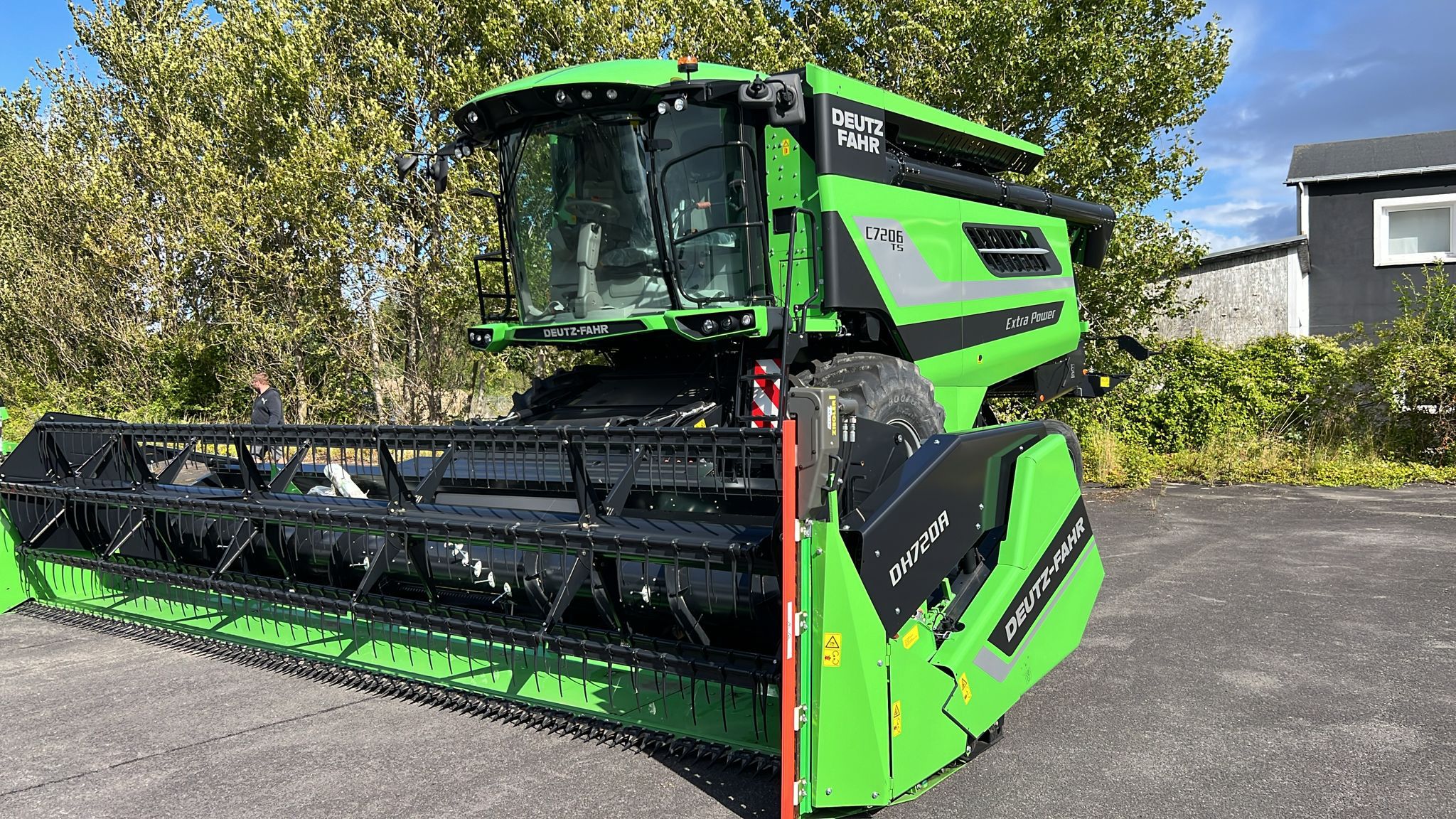

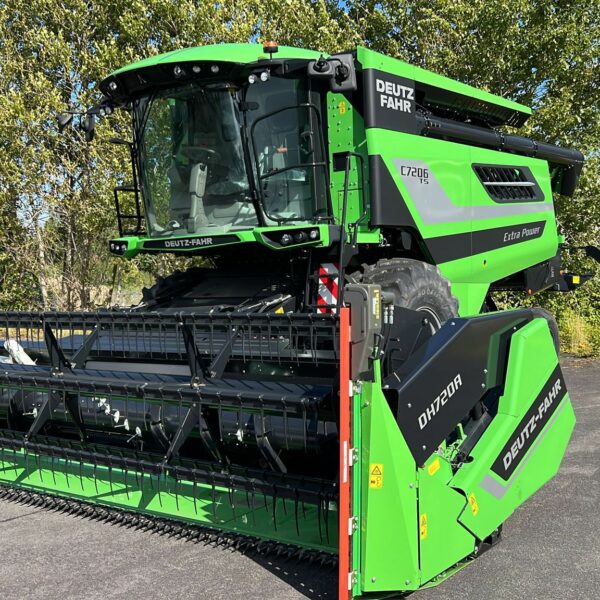

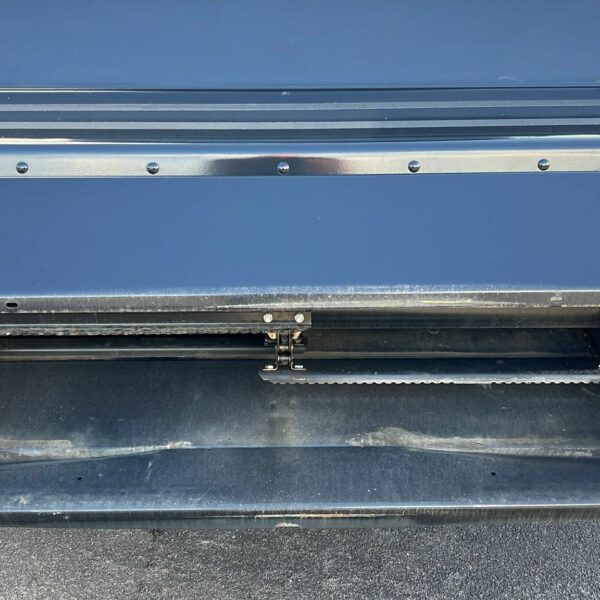

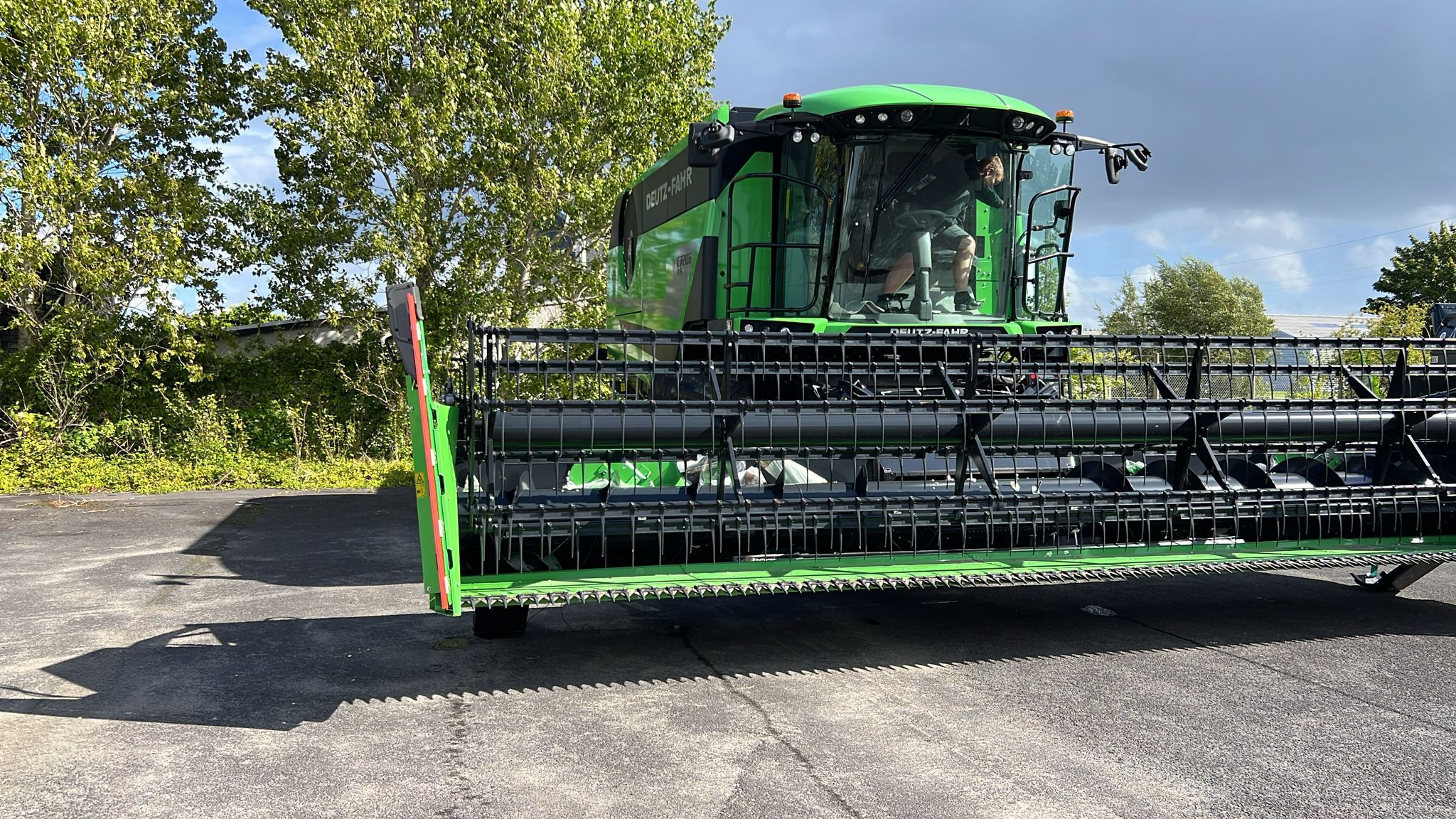

| Header CUTTING TABLE 7.2m |
|
| w/o double-knife side cutter left fitted |
|
| Use and maintenance manual |
|
| L1054 DEUTZ-FAHR HEADER 7.2 M WITH AC-HA |
|
| L3001 MULTI-COUPLING CUTTING TABLE |
|
| L7002 LONG FOLDABLE DIVIDERS |
|
| T9026 LITERATURE & USER MANUAL |
|
| with 7.2 M HEADER RAPE ATTACHMENT |
|
