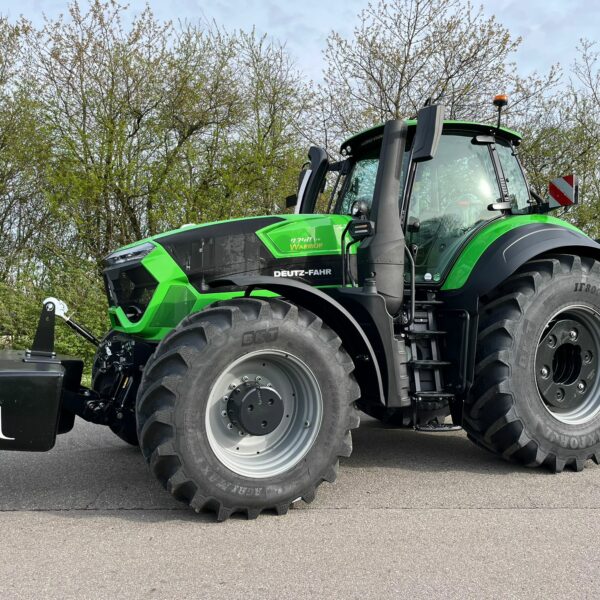

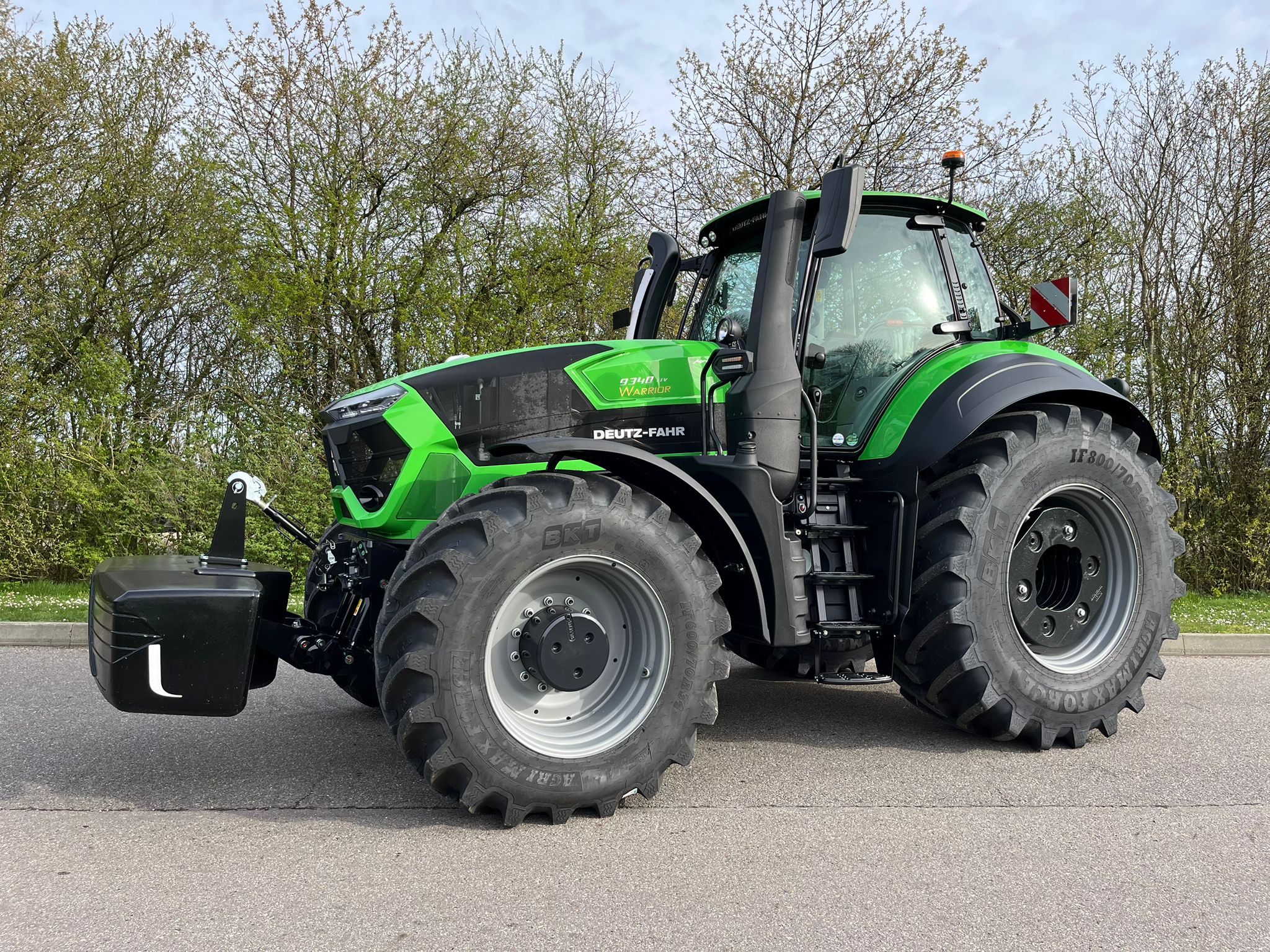

| 9340 AGROTRON TTV E3 |
light Panel) centralized control panel for |
| DEUTZ TTCD 7.8 L06 Stage IIIA 4 Valve |
all tractor lights + WorkMonitor |
| Deutz Common Rail (DCR). |
XLarge Vision: right and left telescopic |
| 6 cylinder. 7775 cm³ capacity with with |
rear XL mirrors with external courtesy LED |
| double stage turbocharger. |
lights. |
| Power at rated speed (2100 rpm) (ECE R |
Rear window wiper |
| 120): 316 HP/232 kW. Max power |
Leather and fabric passenger seat with |
| (1900 rpm) (ECE R 120): 336 HP/247 kW. |
seatbelt |
| Automatic Function for: 4WD, |
Rolling safety seat belt |
| Diff.-Lock, PTO. ComforTip headland |
Warning plates |
| management. Hydrostatic steering |
English OECD plates |
| with independent pump. Tilting and |
Standard specs |
| adjustable column. Rear ELECTRONIC |
Without specialization |
| lift. Digital display. Comfortip: |
Front steering mudguards |
| sequential drive system. |
Tyres Brand supplied by Factory |

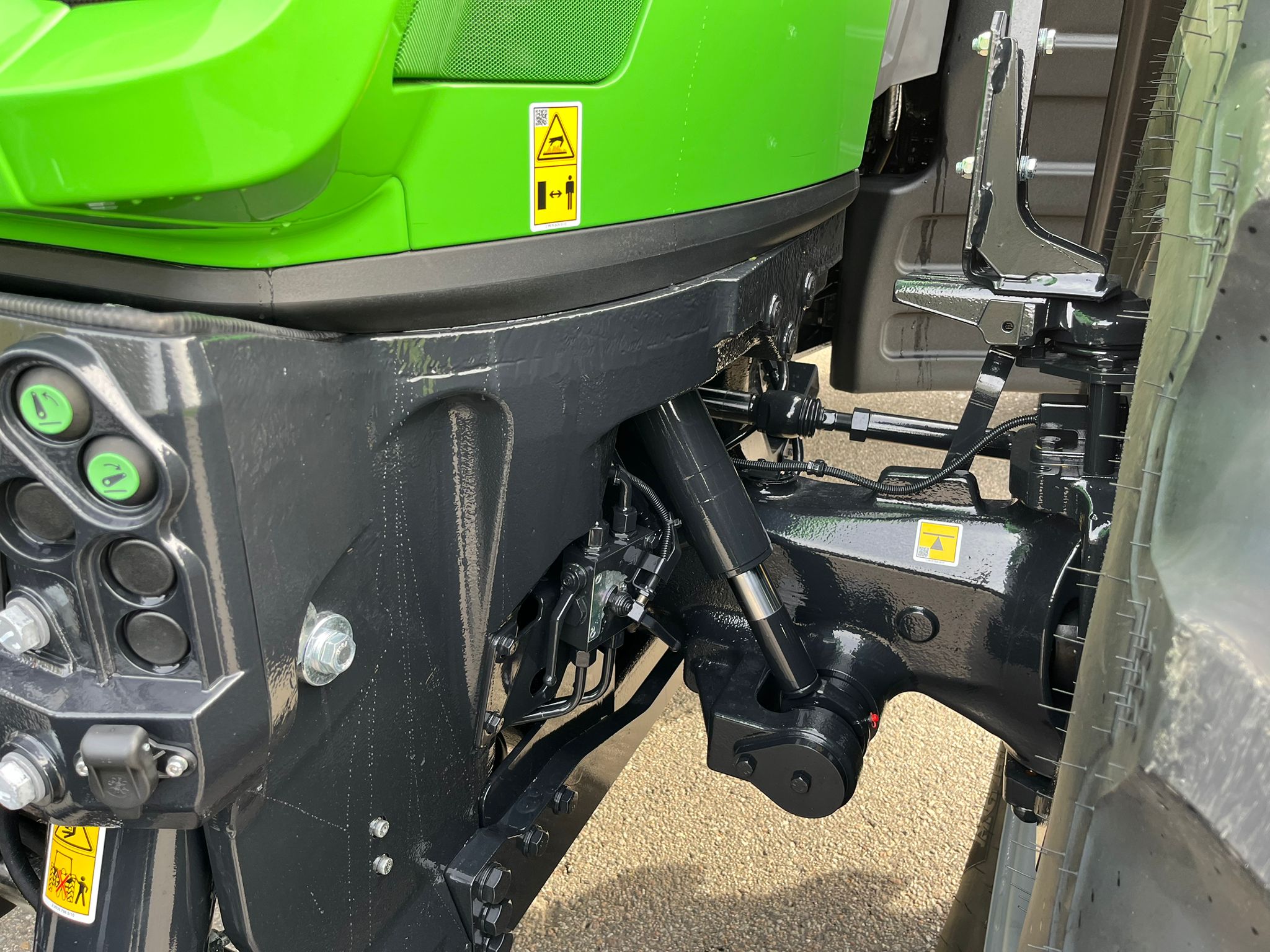

| FRONT SUSPENDED AXLE + Front differential |
Continuously Variable Transmission |
| lock oil-immersed multi-disc + ASM system |
(TERRAMATIC) with 3 driving strategies |
| Electronic Parking Brake (EPB) |
(MANUAL/AUTO/PTO). Rear PTO: |
| Without Connectivity Value Package |
540E/1000/1000E (includes 1″ 3/4 with 20 |
| Air filter with dust ejector, pre-cleaning |
splines stub shaft) |
| via permanent vacuum through the engine |
Fixed rear axle |
| fan |
Transmission designed for 60 Km/h, limited |
| Fuel tank cap without lock |
to 40 km/h at super-economy engine speed |
| Fuel tank: 600 l |
OPTIONALS: |
| Without cameras |
WD030 Rear mudguard extensions |
| Without keyboard control MMI |
(overall width 3000 mm) |
| 2 upper headlights on cab post |

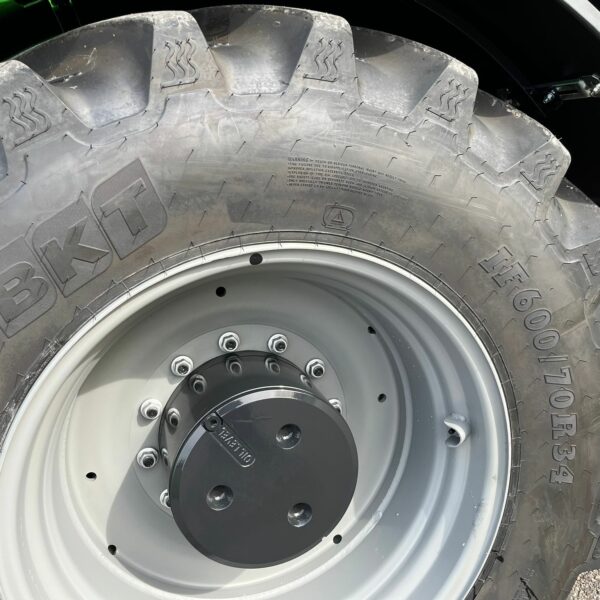

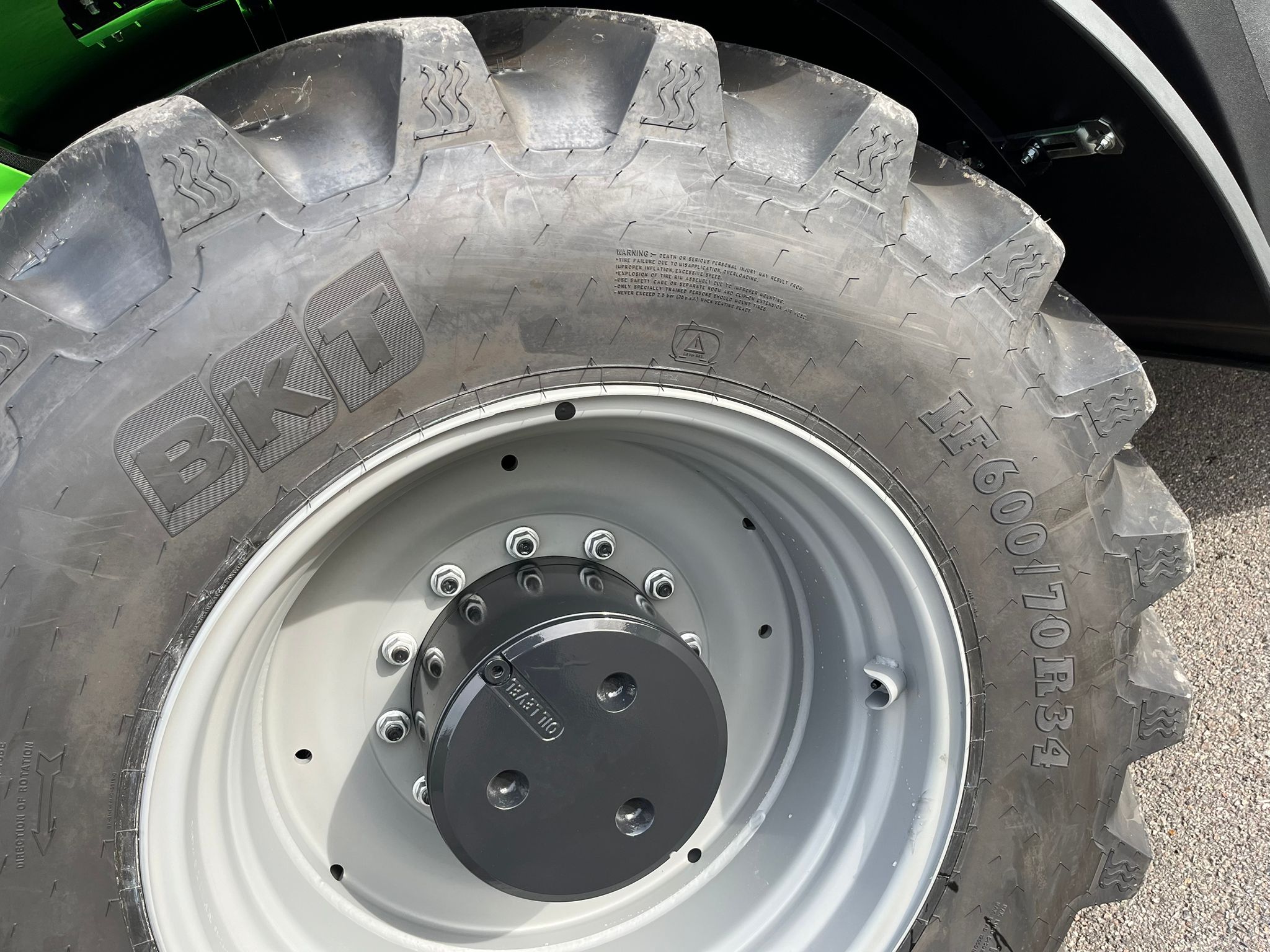

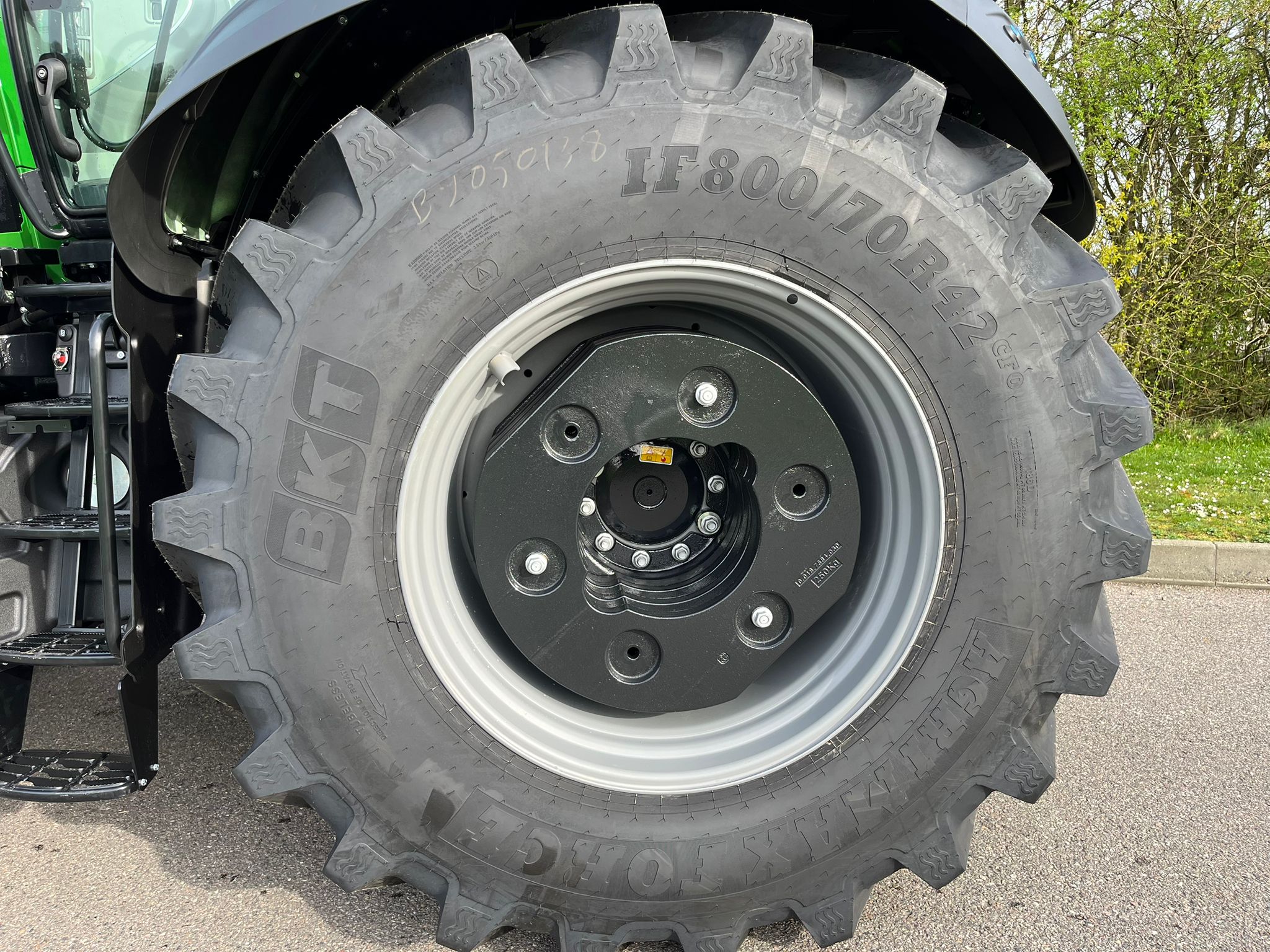

RF1179 Tyres: IF 600/70 R34 front, IF |
| Front LED work lights on bonnet |
800/70 R42 rear (fixed rims) |
| Without front work lights on indicators |

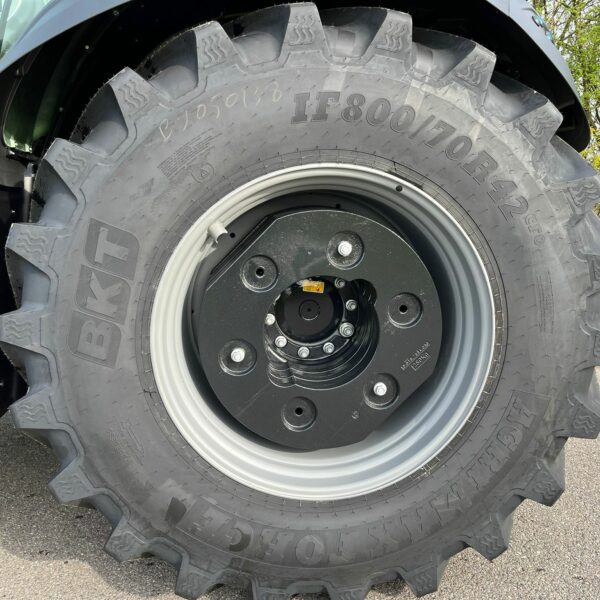

RD111 Ballast for rear wheels (4×4 |
| Light |
total 1840 kg) |
| Front headlights for right-hand traffic |
TC026 User manual |
| Battery: 12V – 180Ah – 1200A (EN) / 800A |
CZ121 „WARRIOR GREEN“ equipment with |
| (IEC) / 700A (DIN) |
Warrior lettering. Green body, |
| Hydraulic distributors with „Push-pull“ |
LED lights pack, Syntetic |
| quick couplers and oil recovery tank |
leather seat, stainless plate |

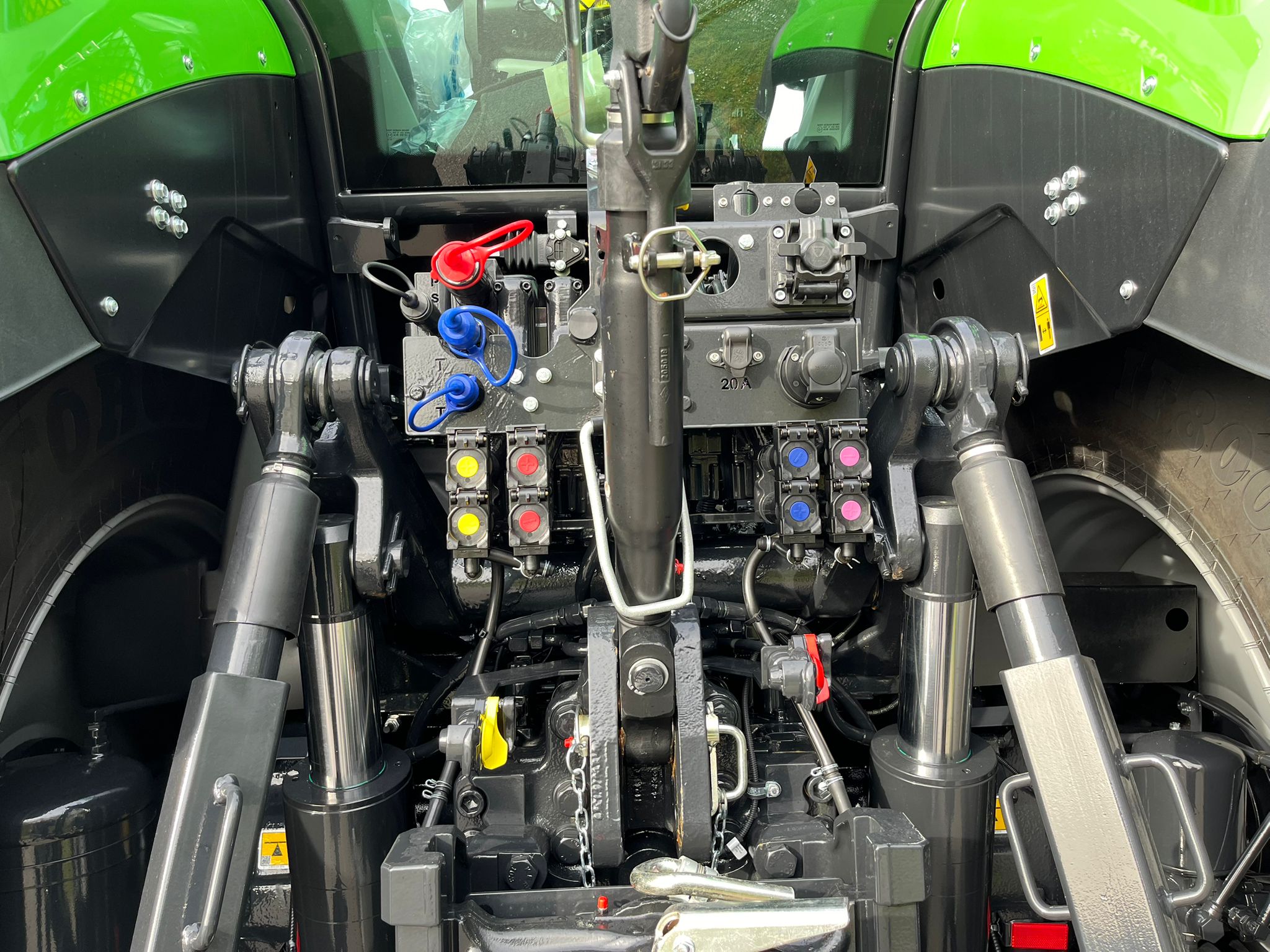

| 4 electro-hydraulic rear distributors with |
on muffler. |
| flow regulator and timer |
AX001 Cab floor mat cover |
| Free hydraulic oil return |
AV031 Cab roof hatch. 4 front + 4 |
| Without front hydraulic outlets |
rear LED work lights on cab |
| Drawbar & hitches (SAUERMANN) |
roof |
| Without remote controls for automatic |
AQ026 AUTOMATIC air conditioning |
| trailer hitch |

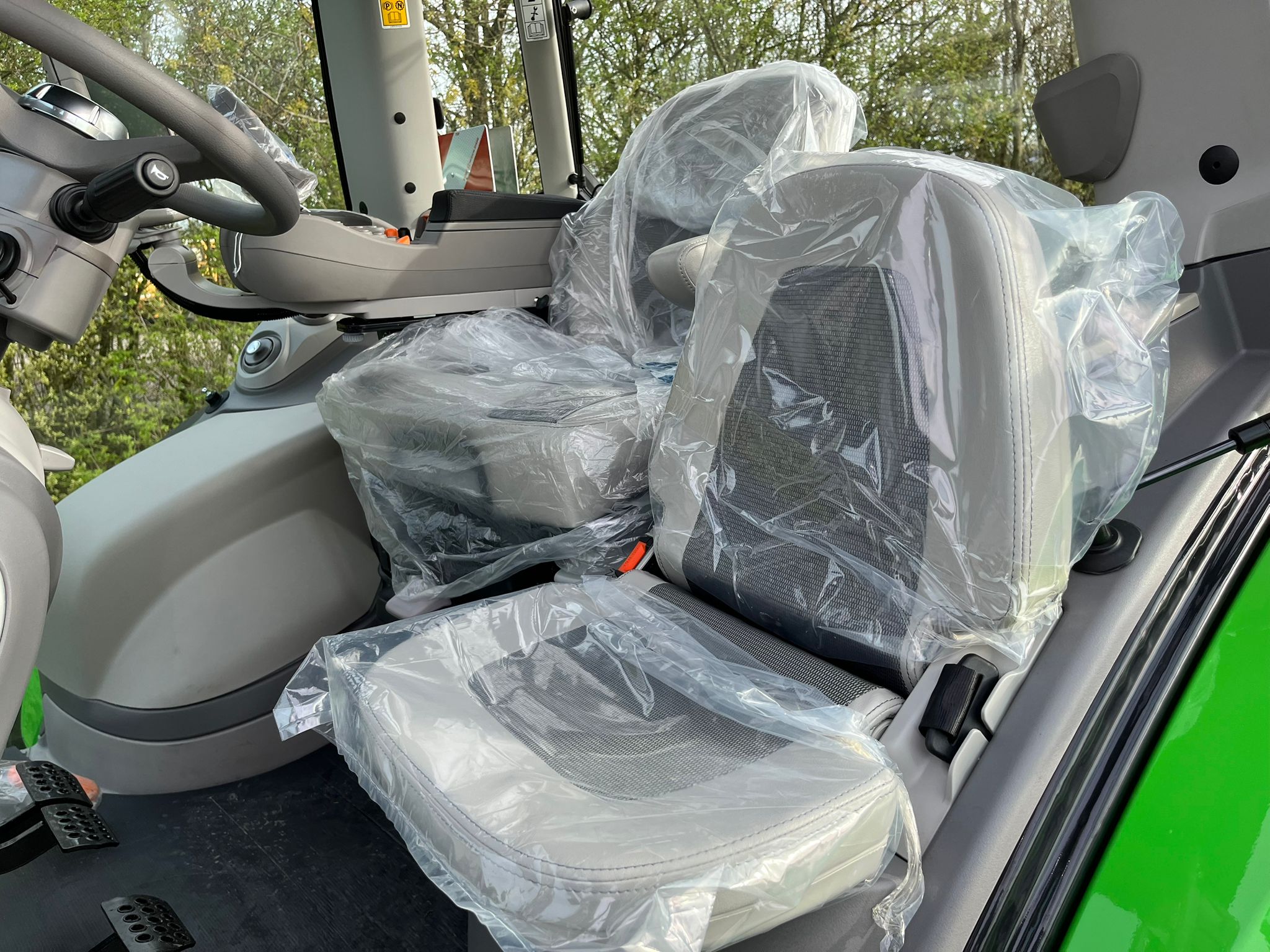

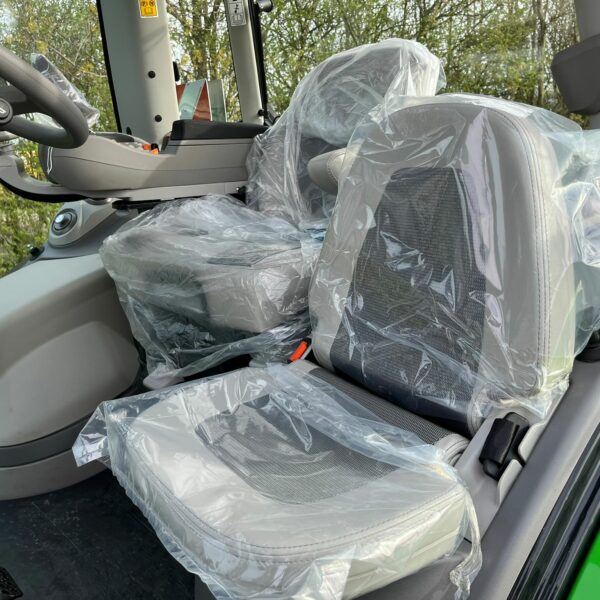

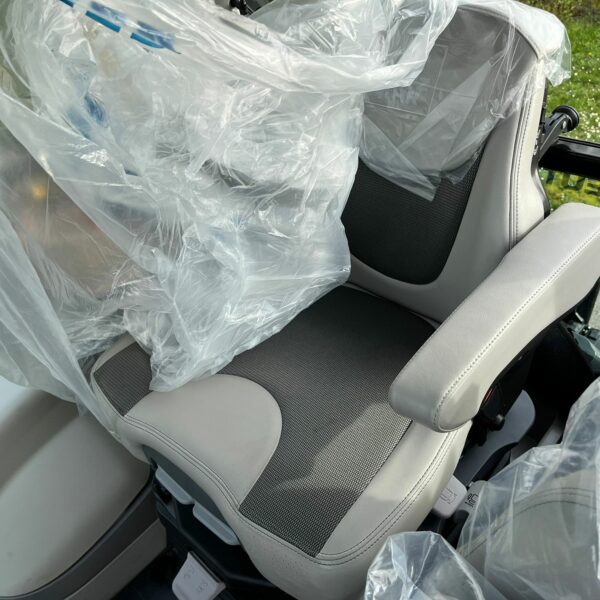

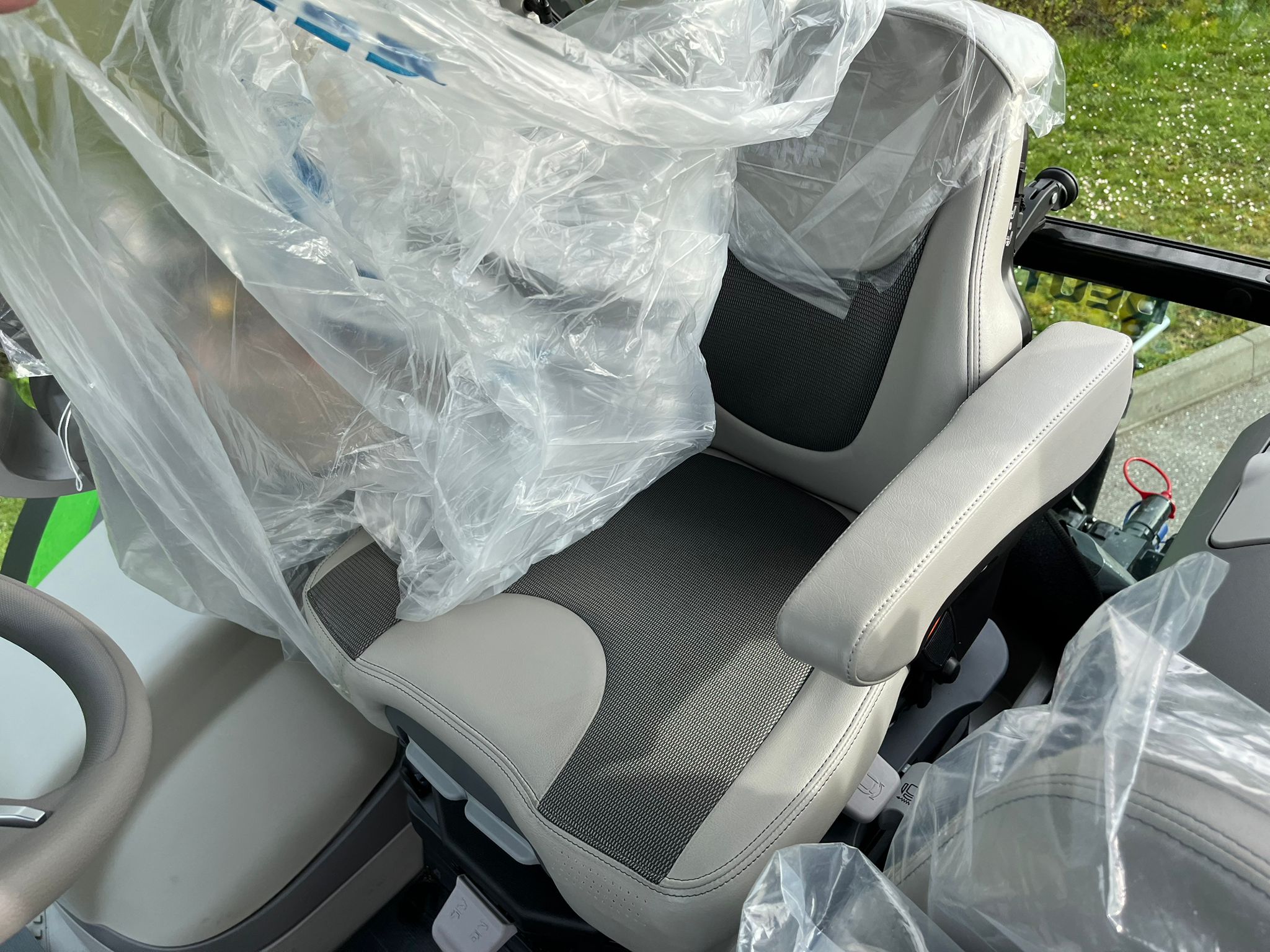

AE497 Seat Max-Dynamic Evo DDS XXL |
| Rear hitch „CEE“ with quick adjustment |
(SYNTHETIC LEATHER) (low |
| Self-locking automatic stabilizers |
frequency air-suspension with |
| Without front clevis |
Dynamic Damping System, |
| Without front plate for front weight |
automatic weight adjustment, |
| Without front weight frame |
adjustable seat position, |
| Lift assistor rams 120 mm (12000 kg |
document holder, pneumatic |
| capacity) |
lumbar support, upper backrest |
| Mechanical right and left tie rod |
extension, active climate |

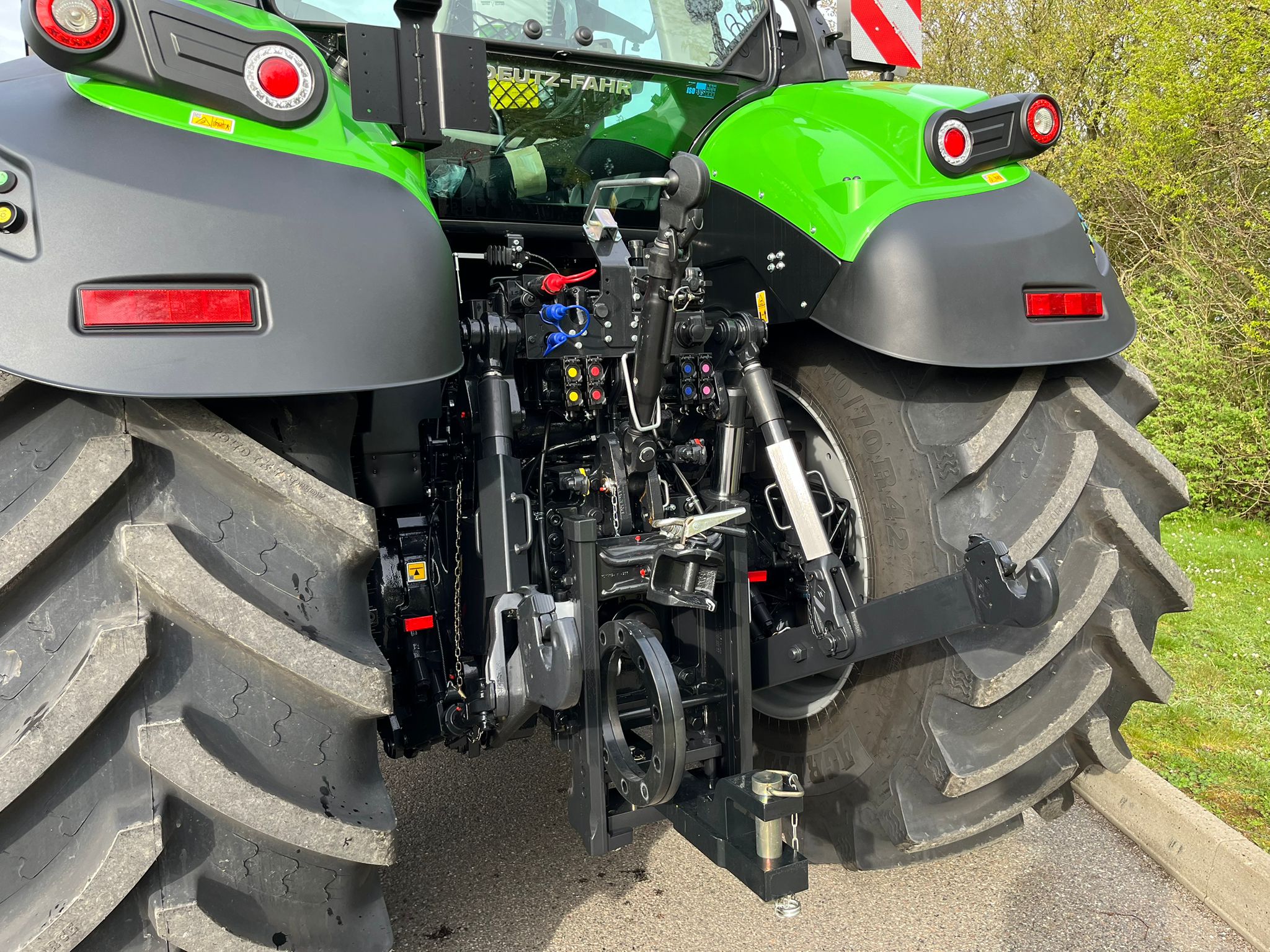

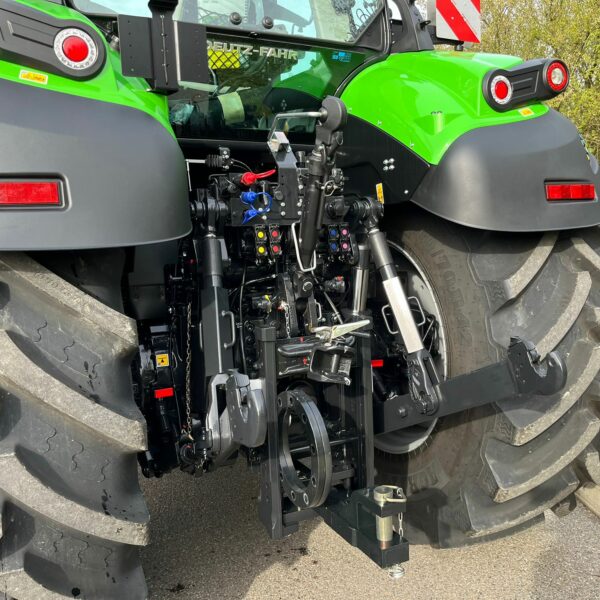

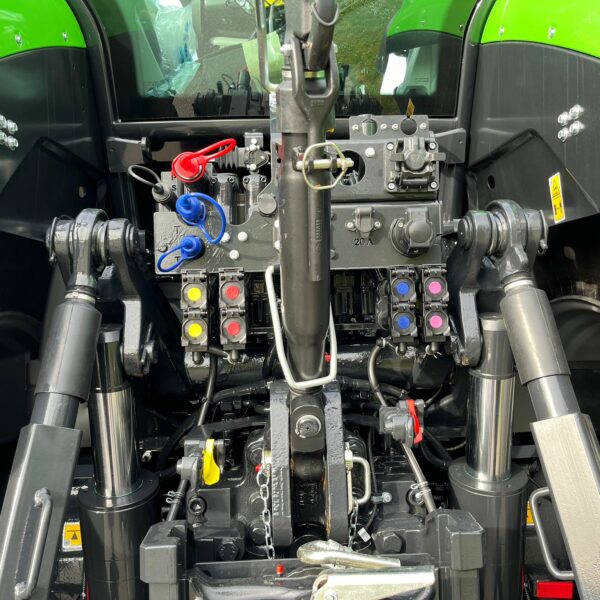

| Three-point linkage with automatic upper |
system, lateral suspension, |
| and lower links cat. III |
fore-aft suspension, swivel LH: |
| Front linkage without accessoires |
8°, swivel RH: 15°, extra wide |
| Electro-hydraulic valve for FRONT LINKAGE |
frame 550 mm) and Multifunction |
| control |
Armrest |

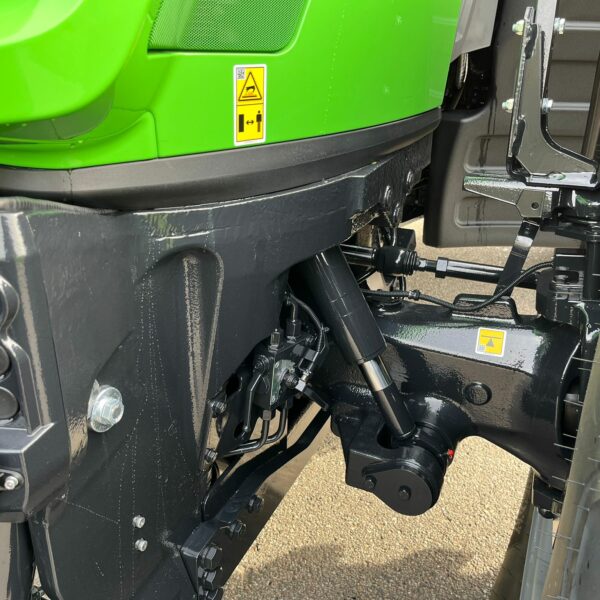

| FRONT LINKAGE with double effect cylinders |
YQ023 Swinging drawbar cat. IV |
| (5000 kg capacity). 2 additional |

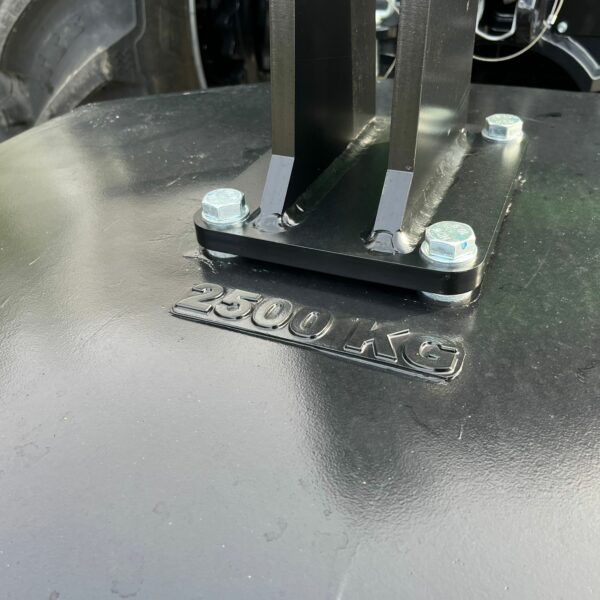

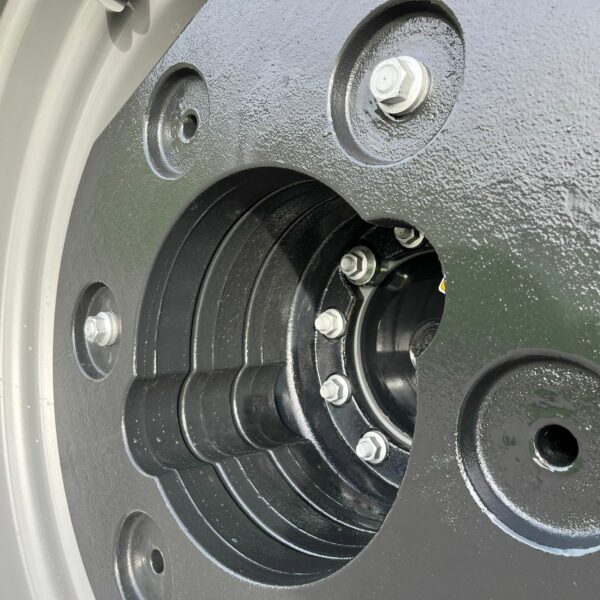

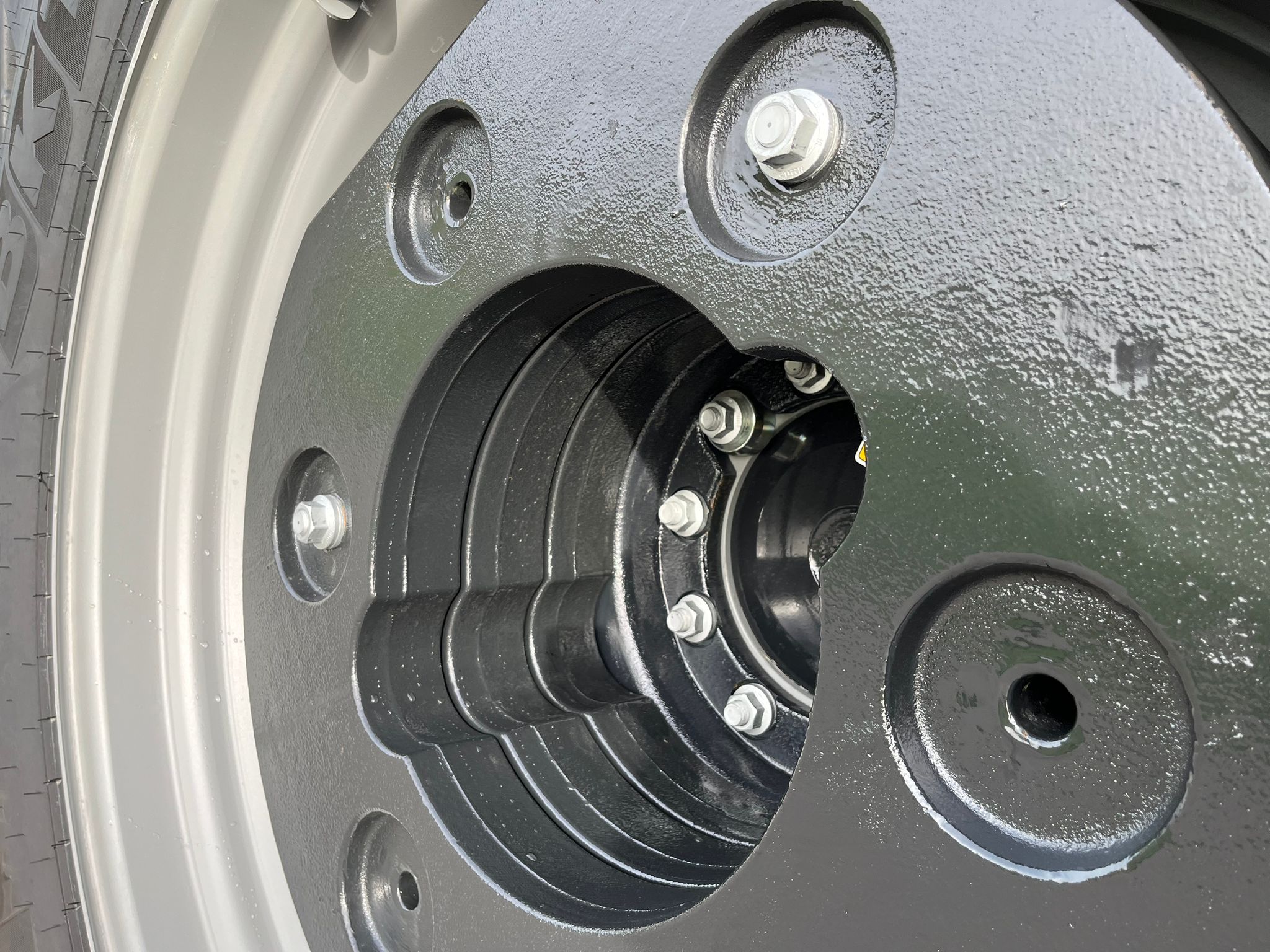

YI014 FP-PAC (magnetite) ballast for |
| headlights on cab post |
front linkage (2500 kg) |
| Without Application Package Basic |
FC003 Cat. III AUTOMATIC upper link |
| Rear mudguards with push-button panel for |
for front linkage |
| rear lift, electro-hydr. spool valve and |
GX001 POWER BEYOND: direct oil inlet |
| PTO |
to connect to the external spool |
| Self-levelling cab with PNEUMATIC |
valves |
| suspension |
GB452 Close centre hydraulic system |
| Cab with rear opening window |
with „LOAD SENSING“ pump (210 |
| Cab with front fixed window and lateral |
l/min) |
| opening glasses |
GR003 20 litre additional air tank |
| WITHOUT CAB FILTERS |
for pneumatic trailer braking |
| Without automatic steering system |
system |
| without telematic module |
GS003 Pneumatic trailer braking |
| Without GNSS receiver |
system with 3 outlets |
| Headrest for seat |
RR001 Radar |
| Without bracket for external monitor / |
VF017 LED rotary beacon |
| device |
VJ020 7-pin socket for equipment (ISO |
| Cab roof with opening HATCH without FOPS |
11786) |
| Right fixed ladder |
VX001 Rear electrical socket ISOBUS |

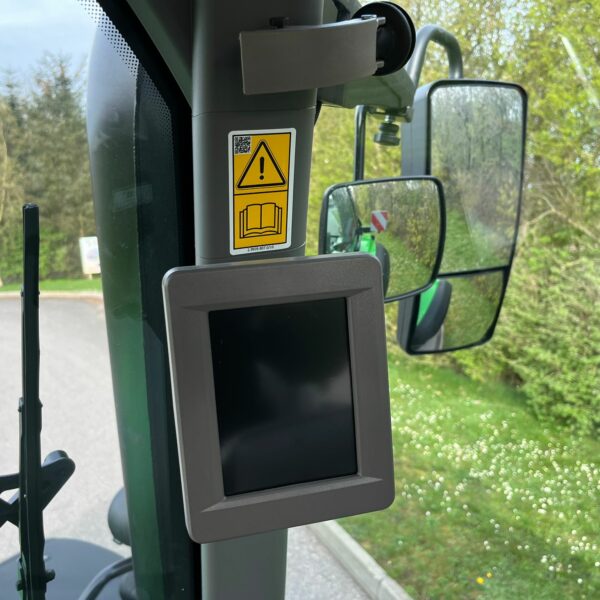

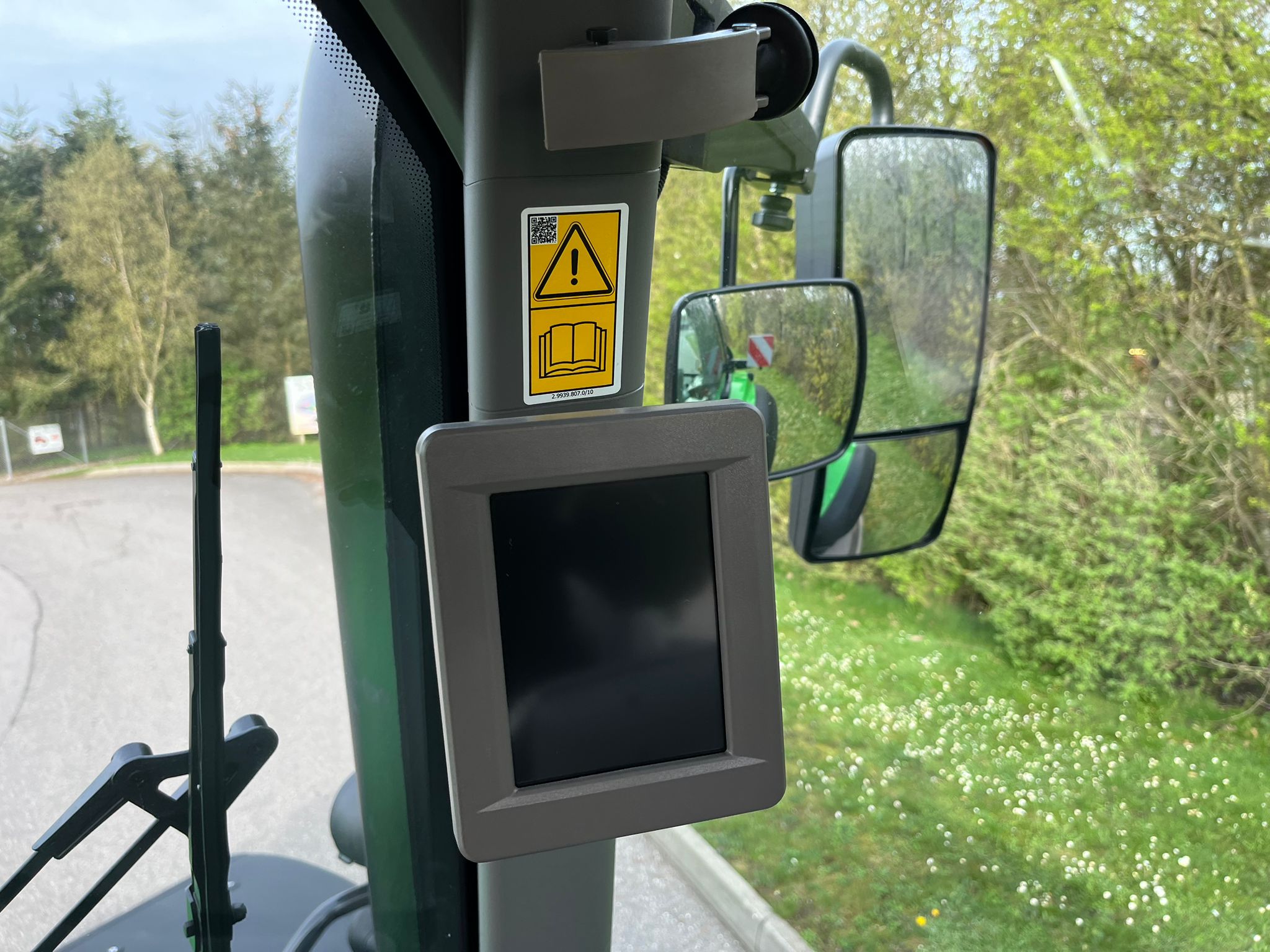

| InfoCentrePro with 5″ colour display |
ISO 11783 |
| (km/h) |

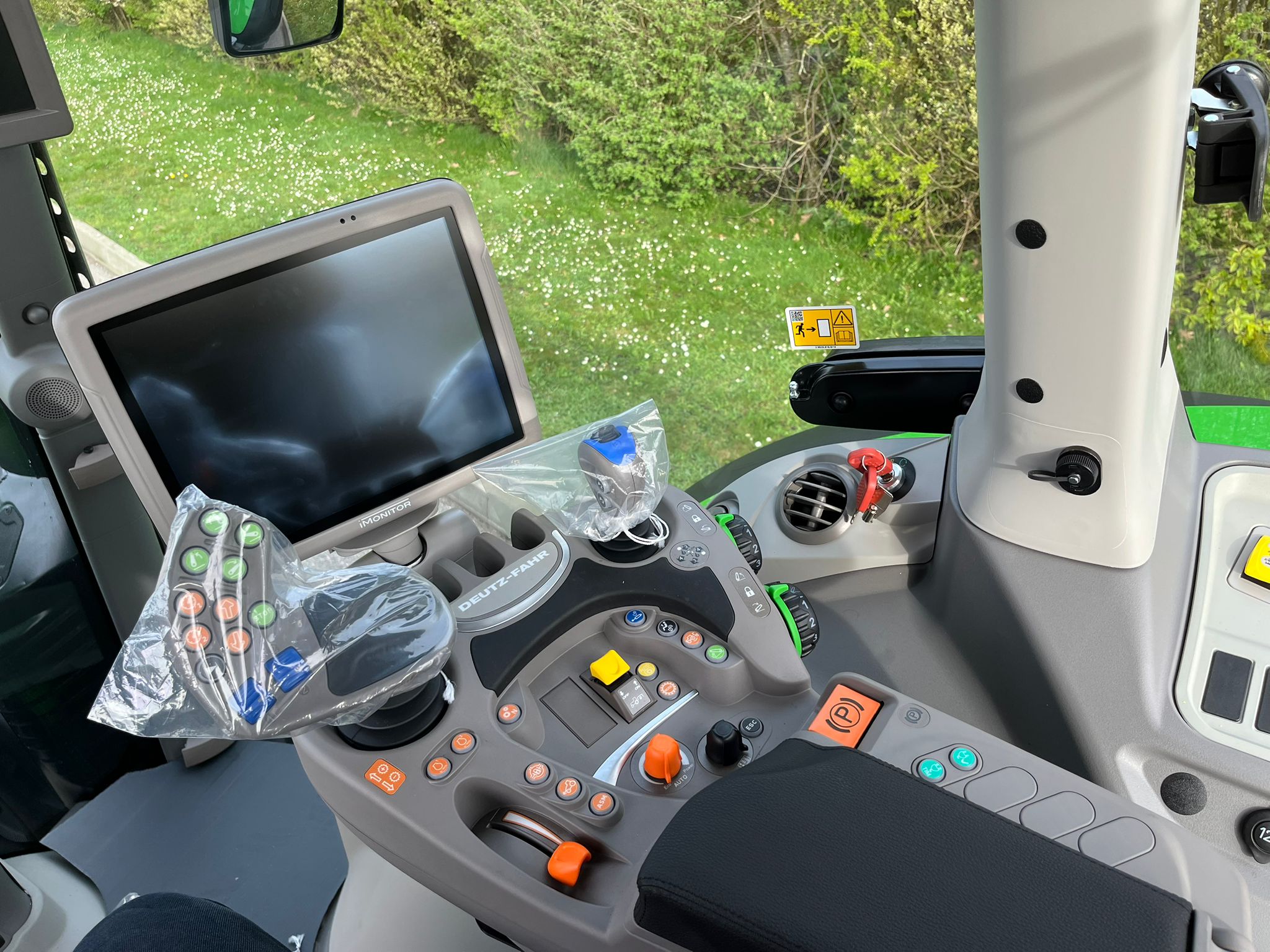

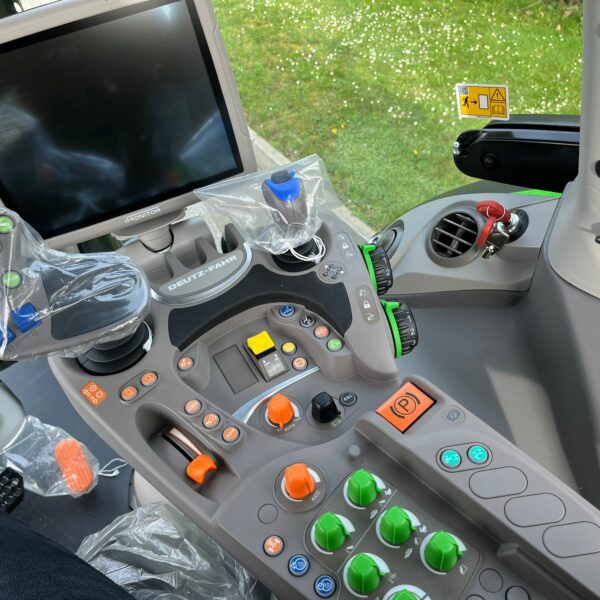

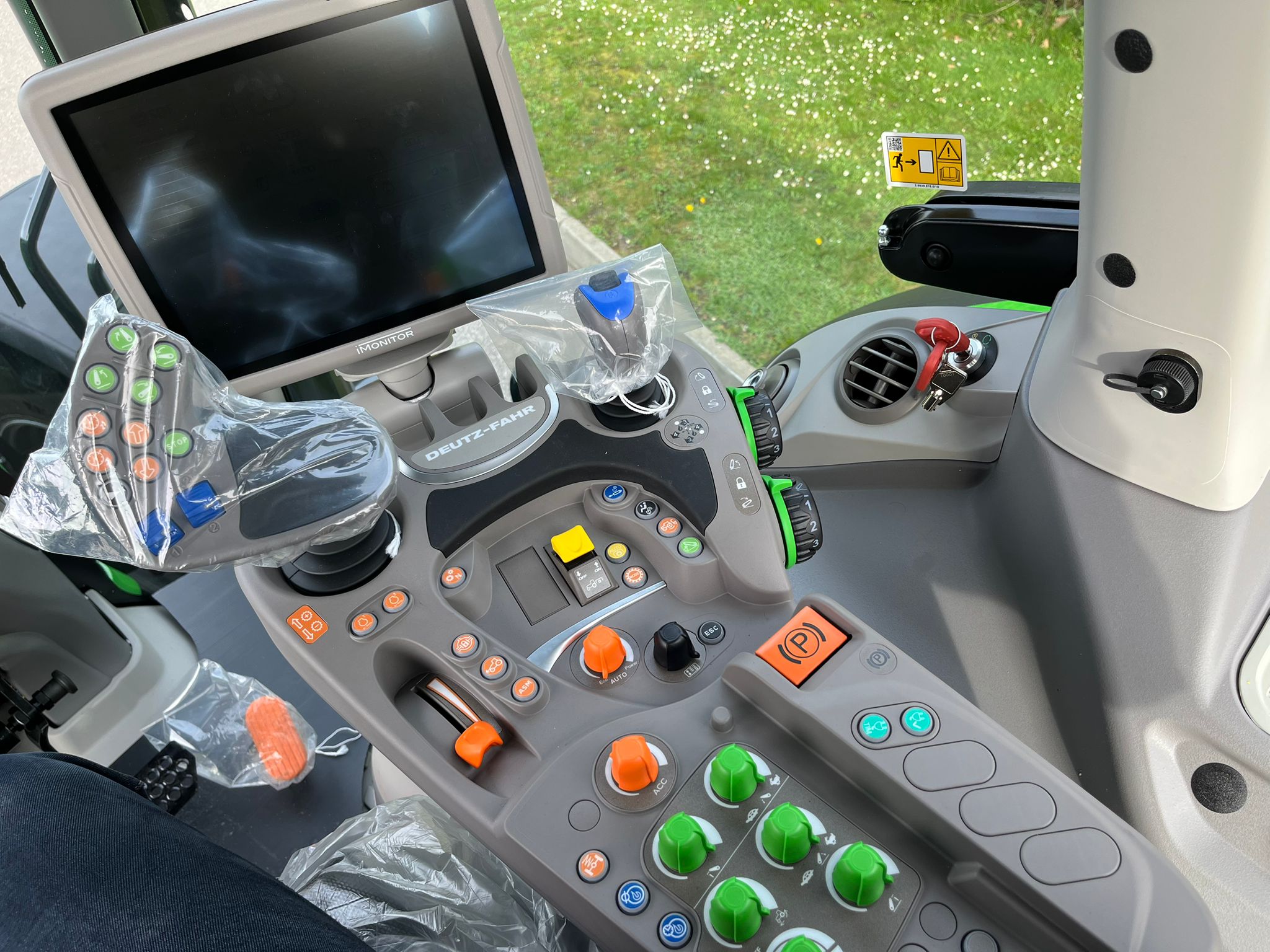

VY021 iMonitor3 in 12″ contains |

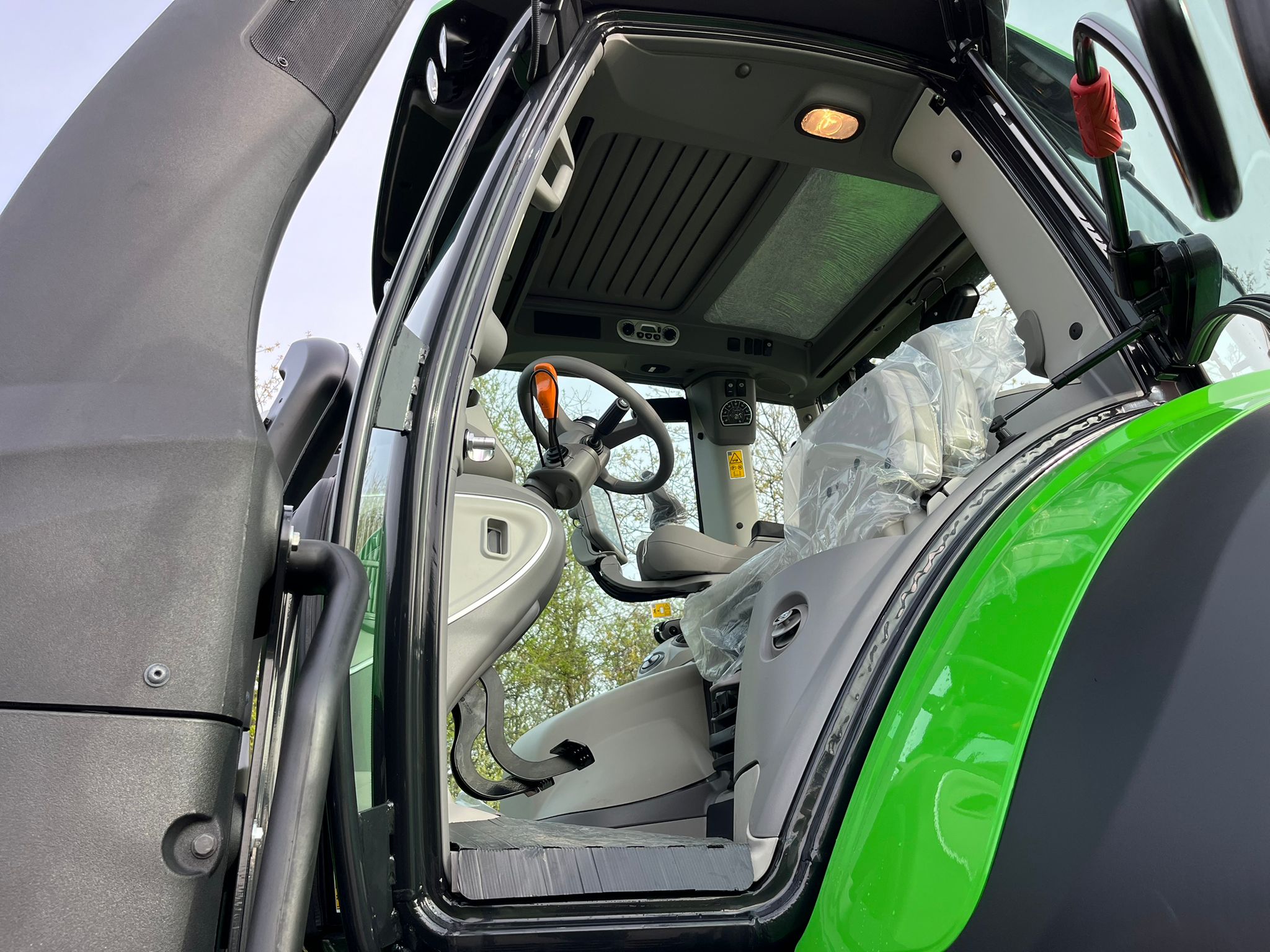

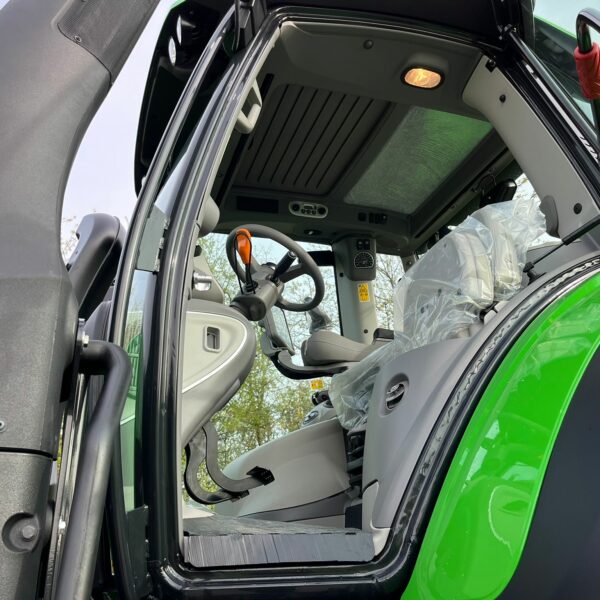

| MaxiVisionPro CAB with: Panorama Window in |
Isobus features: Universal |
| the front, interior cover, consolle, |
Terminal, TC-SC with up to 200 |
| ventilation and heating system, |
sections, TC-BAS for ISO-XML |
| pre-arrangement for radio with antenna and |
data transfer, TC-GEO for |
| 4 loudspeakers, tinted glasses (side and |
variable rate control, AUX-N |
| rear), 2 front work lights, ambience |
assignments |
| light, automatic direction indicator, |
CA005 Heated fuel prefilter |
| telescopic external mirrors, external |
CC112 Vertical exhaust pipe on cab |
| outlet for equipment check, refrigerated |
post with stainless plate on |
| and heated drink storage compartment, |
muffler |
| parcel tray. WOLP Panel (Working Operating |
